BCDS-100V20A40-Linear aging cabinet Tester

Application scope

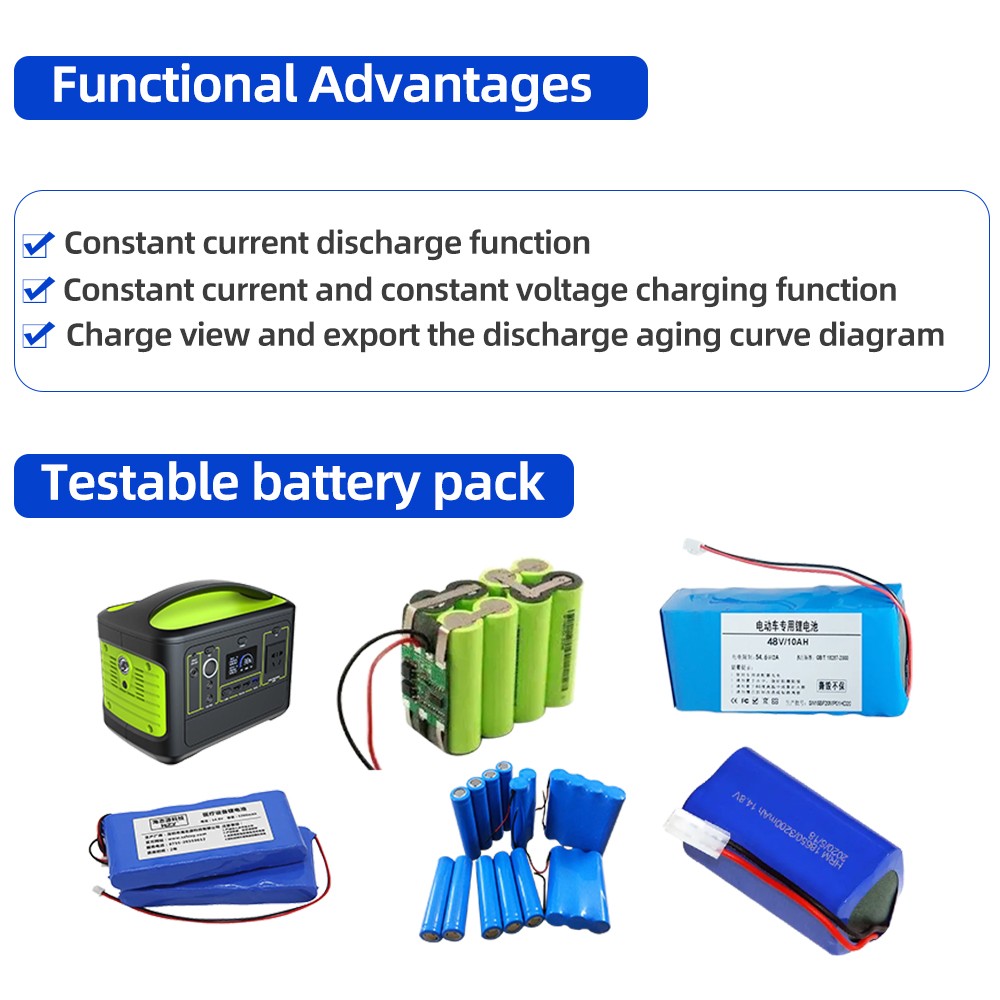

Applied to electric tools, solar energy storage, twisted car, scooter, electric bicycle and other lithium battery pack cycle charging, discharging, battery pack function test and charging and discharging data monitoring integrated charging and discharging cycle test system.

Environmental requirements and technical parameters

Single-channel power supply: AC voltage 220V ± 10% , frequency:50Hz ±10%;

The whole cabinet power supply: AC voltage 380V ±10%, frequency:50Hz ±10%;

Ambient temperature: 0～45℃;

environment without strong vibration, no corrosive gases and flammable and explosive gas presence.

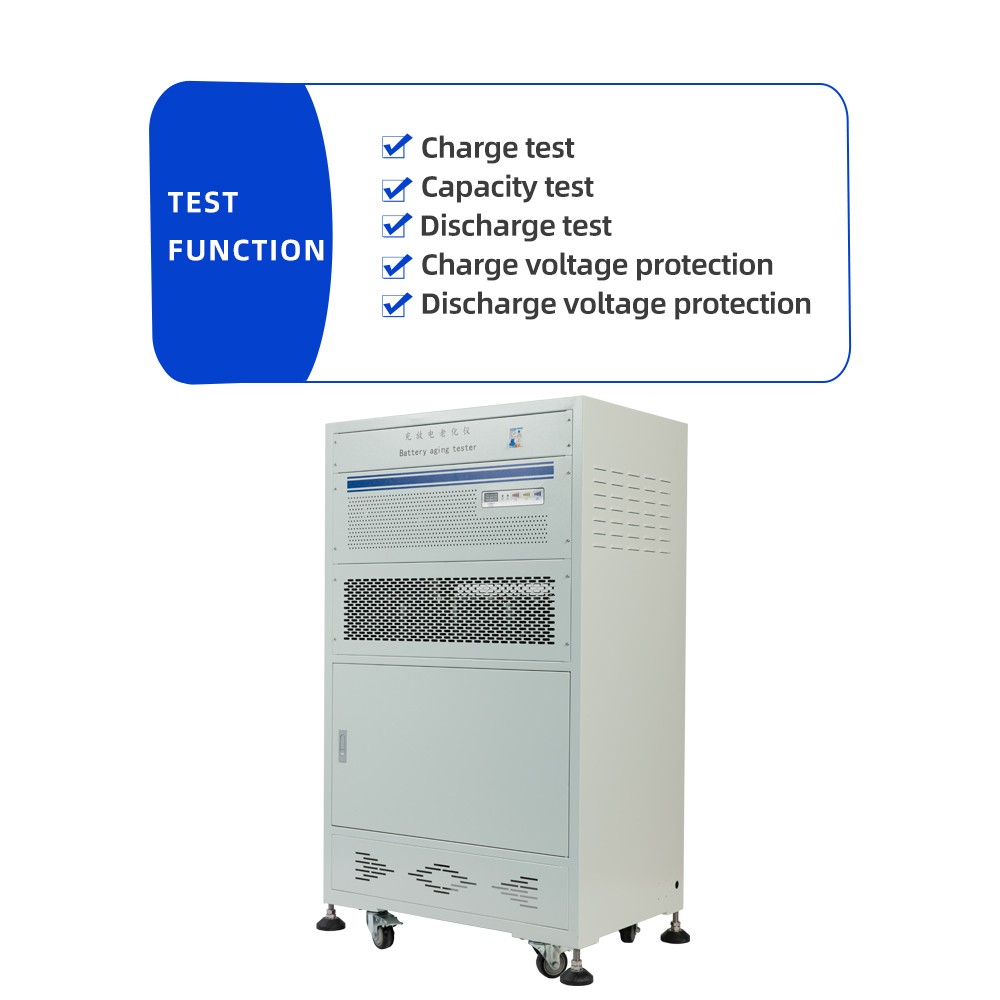

Functional Introduction

Charge/discharge function: constant current and constant voltage charge function, constant current discharge function, charge/discharge the battery and record the battery capacity;

Charge and discharge interface: fully meet the requirements of the battery pack charging and discharging the same port and charging and discharging sub-port, that is, 2 wires (P + P-), 3 wires (P + P- C-) and positive plate charging protection, negative plate discharging protection of power tool batteries (CH + P + P-);

Check voltage protection:By charging and discharging the battery, check whether the charging protection and discharging protection of the battery work;

Safety protection:anti-reverse connection protection function, power-down data protection, branch continuous measurement, voltage upper and lower limit setting protection, safe discharge current protection;

Online mode: the instrument single or 5 or less, can be connected to a PC computer through the serial port; 5 or more using the network connection mode, the PC computer terminal to provide a network port, control up to 30 sets of instruments;

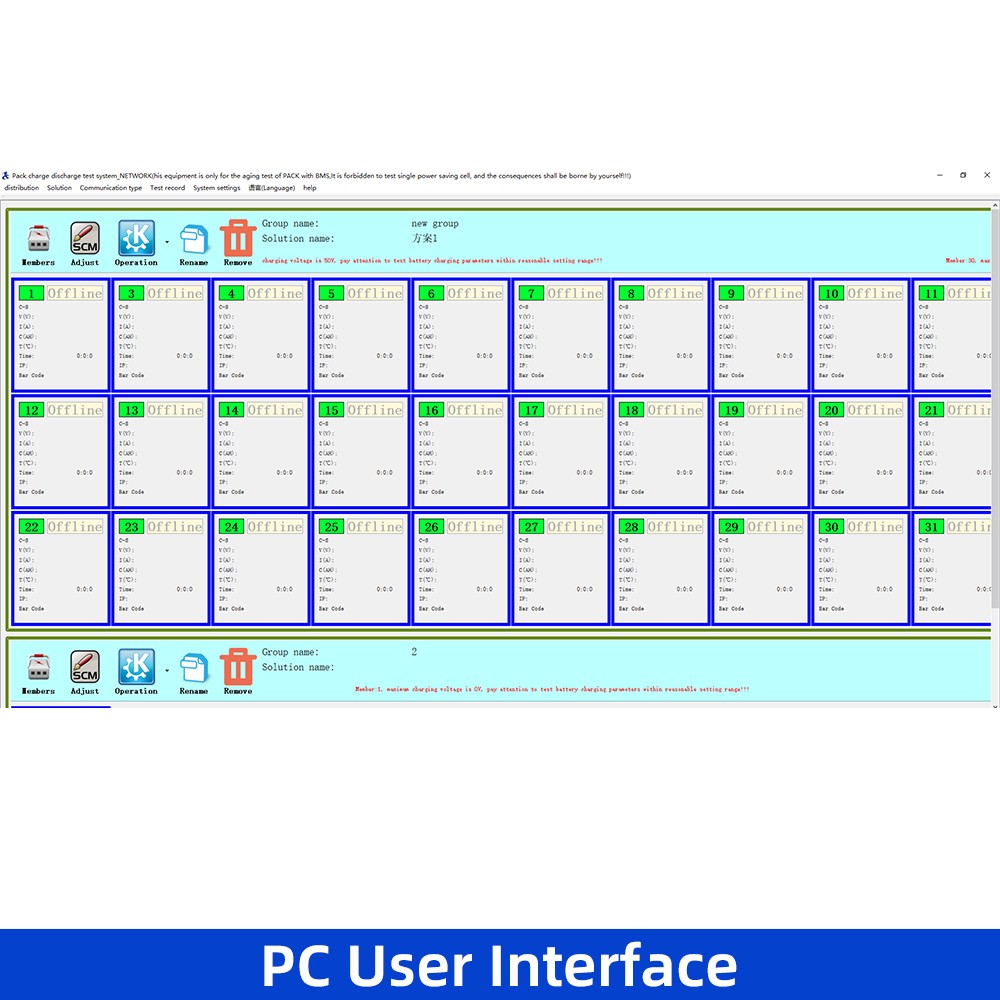

Control system: the software system adopts the classic and mature C/S mode, and the communication mode has two modes: serial port and network.The serial port can realize the short distance several instruments to communicate accurately, the network can realize the long distance many instruments to communicate accurately;

Technical parameters

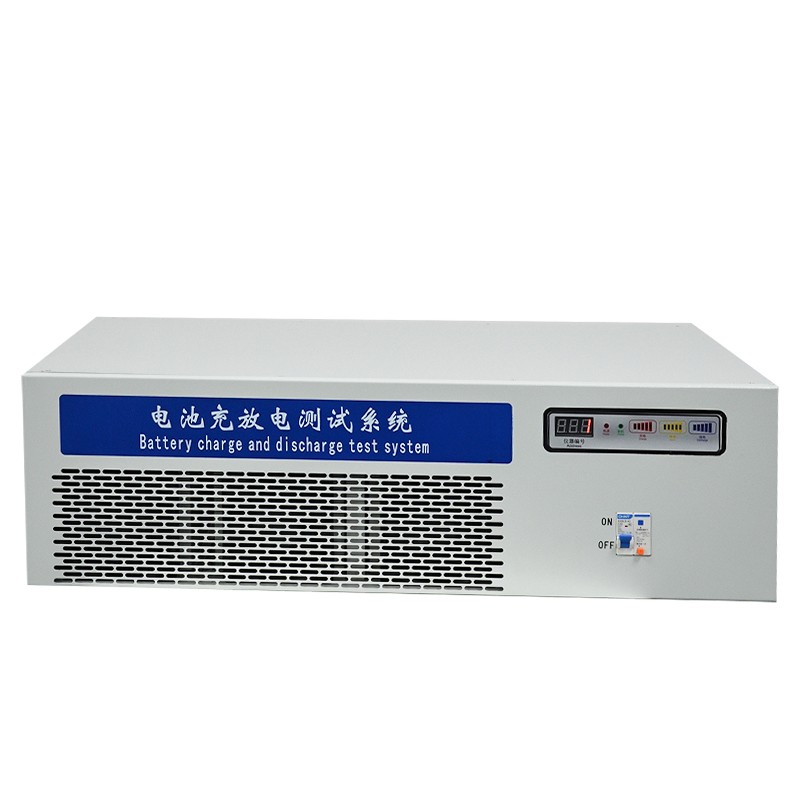

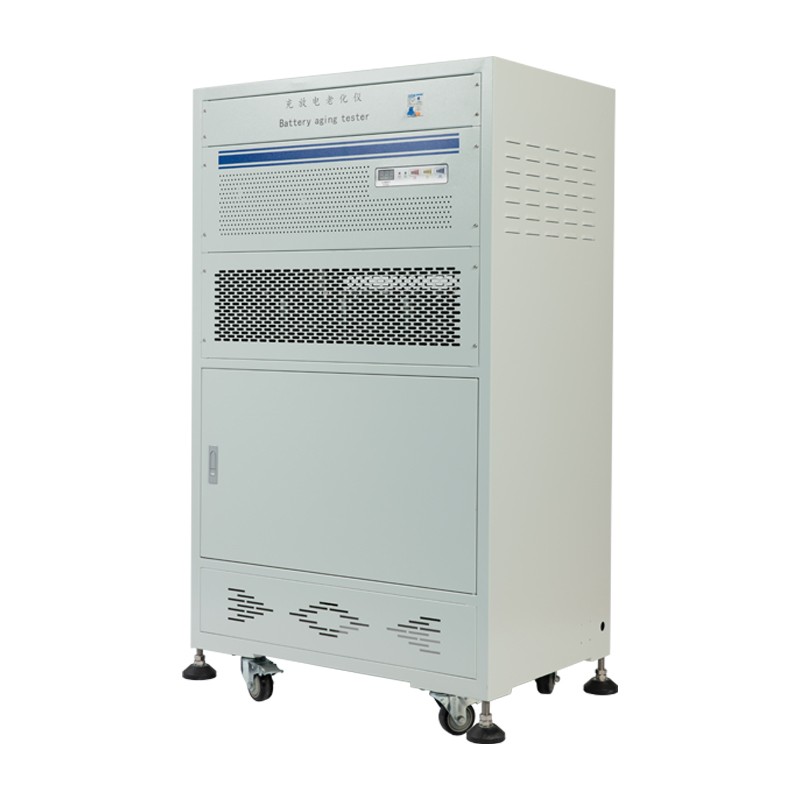

Product appearance and structure

Product logistics packaging

a. Are you a manufacturer or a trading company?

We are a professional lithium battery tester equipment manufacturer with our own factory, which can guarantee product quality and best price.

b. What you can buy from us

PBTS series protection board tester, BTS series comprehensive tester, BCDS series charge and discharge aging cabinet, BDS series discharger

c. How do we ensure quality

Before mass production, it is always a pre-production sample; before shipment, it is always a final inspection.

d. If I want to customize the instrument, how long is your delivery time and how long does it take

1. If it is in stock, it is 5-10 days.

2. We can provide customized services to customers. According to the specifications of the customized instrument, it usually takes 30-60 days.

e. What is the delivery method of the parcel?

1. Standard export wooden box packaging

2. Express, air freight, sea freight According to customer requirements, find the most suitable way.
