BTS50-05-60-Lithium Battery Pack Performance Tester
BTS50-05-60-Lithium Battery Pack BTS Performance Tester applied to semi-finished products and finished products in the production process of battery packs for power tools, solar energy storage, electric balance cars, scooters and so on. and finished products in the production process of battery packs for power tools, solar energy storage, electric balance vehicles, scooters and other battery packs.
Scope of application
Applied to semi-finished products and finished products in the production process of battery packs for power tools, solar energy storage, electric balance cars, scooters and so on. and finished products in the production process of battery packs for power tools, solar energy storage, electric balance vehicles, scooters and other battery packs.
Equipment environmental requirements and technical parameters
power supply: AC voltage 220V ± 10%, frequency 50Hz ± 10%;
ambient temperature: -10 ~ 45 ℃;
the environment is free from strong vibration, corrosive gas and flammable and explosive gas.

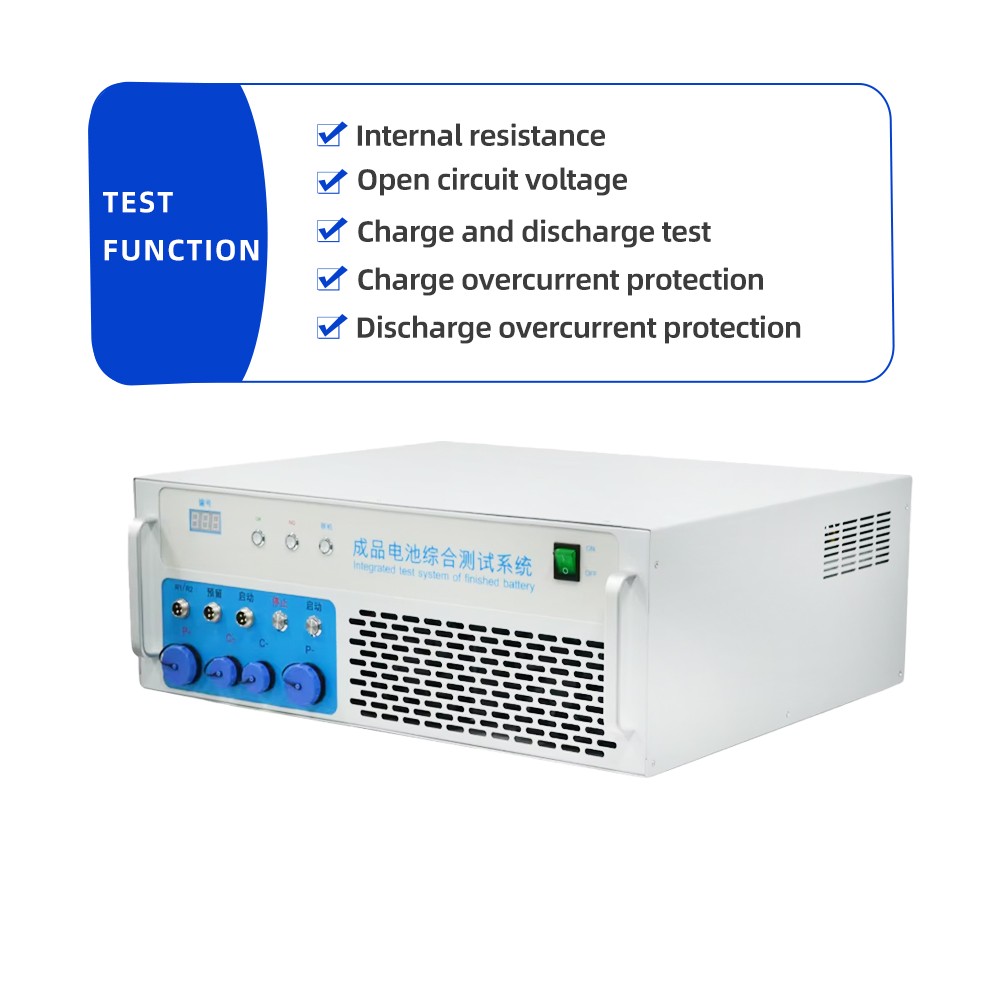

Function introduction
| Model | BTS50-05-60 |
| Purpose | Used for testing semi-finished products and finished products of battery packs below 50V |
| Basic functions | Open circuit voltage test |
| AC internal resistance test | |
| ID resistance test | |
| Charging performance test | Battery pack continuous charging function to verify whether the charging is normal |
| Battery pack charging overcurrent protection function test | |
| Battery PACK Normal Charge Voltage Passing Range Test | |
| Discharge performance test | Battery pack continuous load capacity, continuous discharge, check voltage drop |
| Battery pack discharge overcurrent protection function test | |
| Equipment protection function | Software protection function: power failure data protection |
| power failure protection, short circuit protection, battery reverse connection and wrong connection protection |
Equipment parameter description
| Test Item | Details | Test Range | Resolution |
| Open circuit voltage | Open circuit voltage 1 | 0-50V | 2mV |
| Open circuit | 0-50V | 2mV | |
| AC internal impedance | AC internal resistance test | 0-1000mΩ | 1mΩ |
| Overcharge protection release | Starting voltage | 0-50V | 2mV |
| End voltage | 0-50V | 2mV | |
| Discharge current | 0.1-60A | 1mV | |
| Discharge time | 0-60S | 1mS | |
| Discharge over current test | Over discharge current | 4-60A | 1mA |
| Over current delay | 0-20S | 1mS | |
| Charging test | Starting voltage | 0-50V | 2mV |
| End voltage | 0-50V | 2mV | |
| Charge current | 0.1A-5A | 1mA | |
| Charge time | 0-60S | 1mS | |
| Charging protection test | Charging overcurrent | 3-5A | 0-20S |
| Charging delay | 0-20S | 0.1mS | |
| Resistance R1/R2 | NTC、ID | 0-1000KΩ | 0.1KΩ |
| Sustainable output power | 0.25KW | ||
| Sustainable load power | 3KW | ||
| Online mode | Serial communication (RS232, which can be used by multiple computers online) | ||

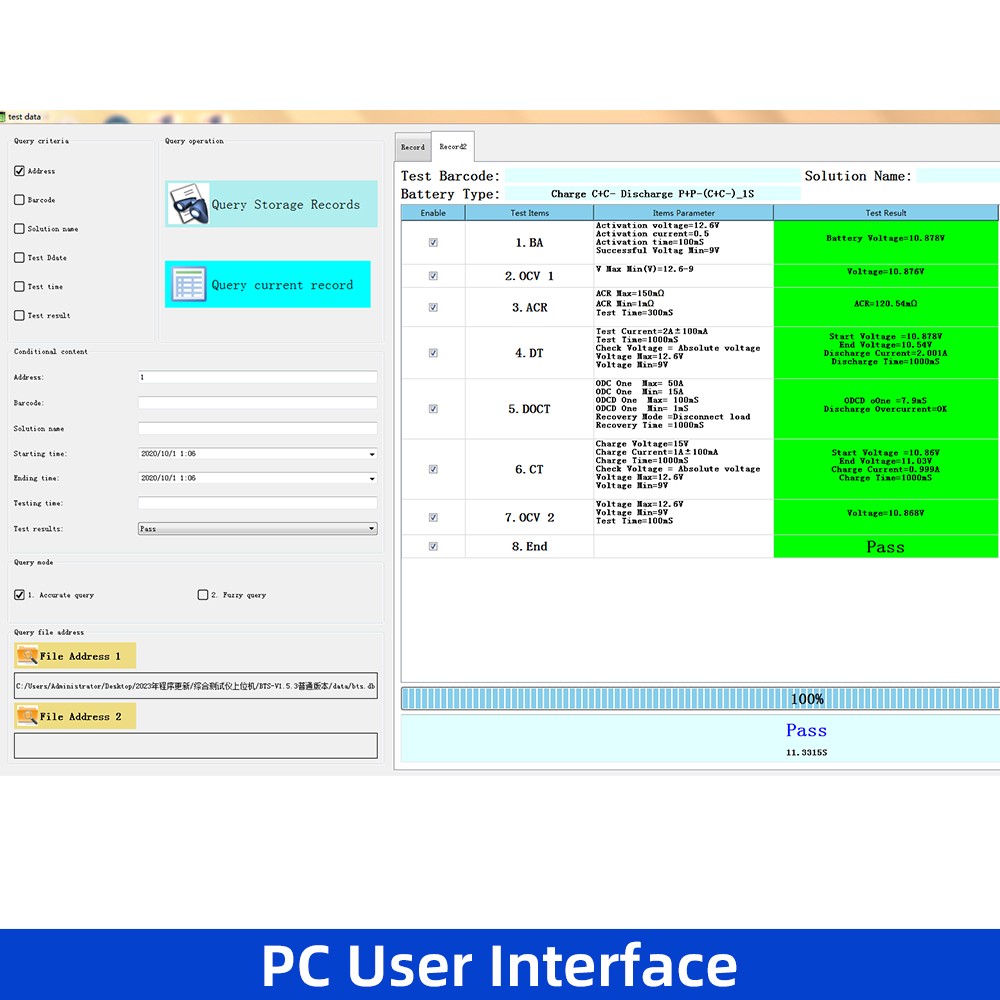

| Test data | The generated data table is automatically saved and can be exported to excel | ||
| Barcode management | Support bar code startup and binding test data | ||
| Warranty Period | 1Year | ||
| Free software upgrade service | Upgrade for free for life until the hardware is incompatible | ||
| Heat dissipation | Ventilation system and forced air cooling | ||

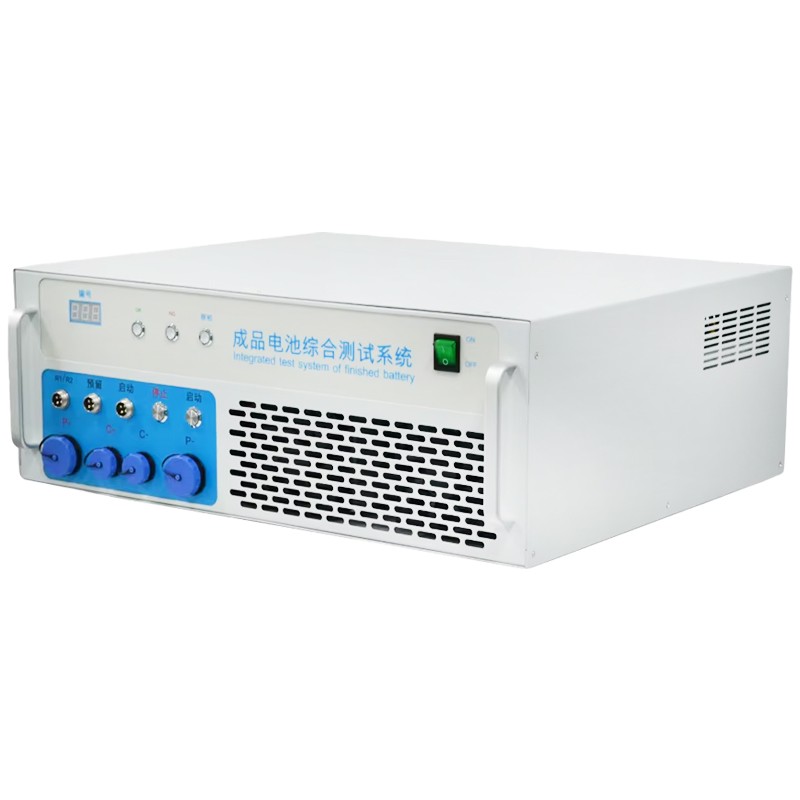

Appearance and structure
| Dimension | 580*500*220mm（W*D*H ） |
| Weight | 1 channel |
| Channel Qty | 1 |
| Spare Parts | Test pen cable, USB-232 online cable, user's manual, host computer software |
Product logistics packaging
a. Are you a manufacturer or a trading company?
We are a professional lithium battery tester equipment manufacturer with our own factory, which can guarantee product quality and best price.
b. What you can buy from us
PBTS series protection board tester, BTS series comprehensive tester, BCDS series charge and discharge aging cabinet, BDS series discharger
c. How do we ensure quality
Before mass production, it is always a pre-production sample; before shipment, it is always a final inspection.
d. If I want to customize the instrument, how long is your delivery time and how long does it take
1. If it is in stock, it is 5-10 days.
2. We can provide customized services to customers. According to the specifications of the customized instrument, it usually takes 30-60 days.
e. What is the delivery method of the parcel?
1. Standard export wooden box packaging
2. Express, air freight, sea freight According to customer requirements, find the most suitable way.
