Lithium Cell Battery Capacity Tester

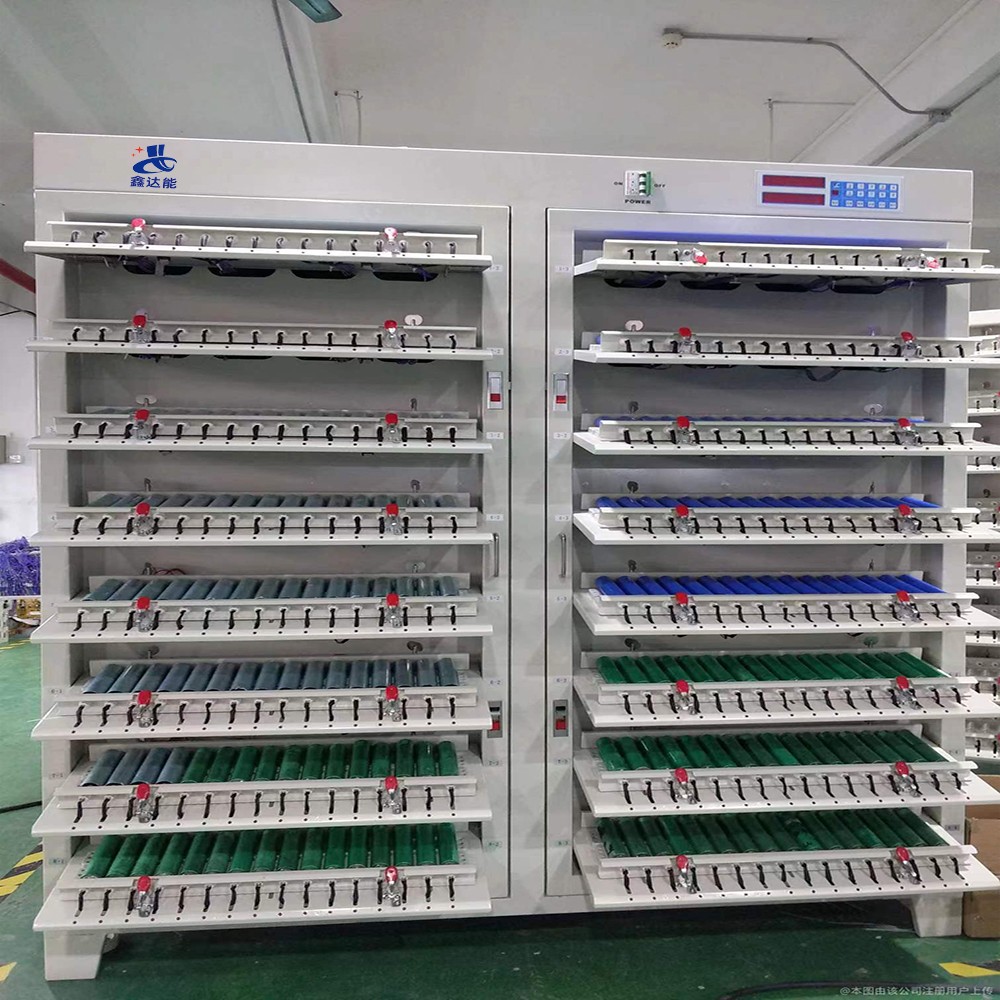

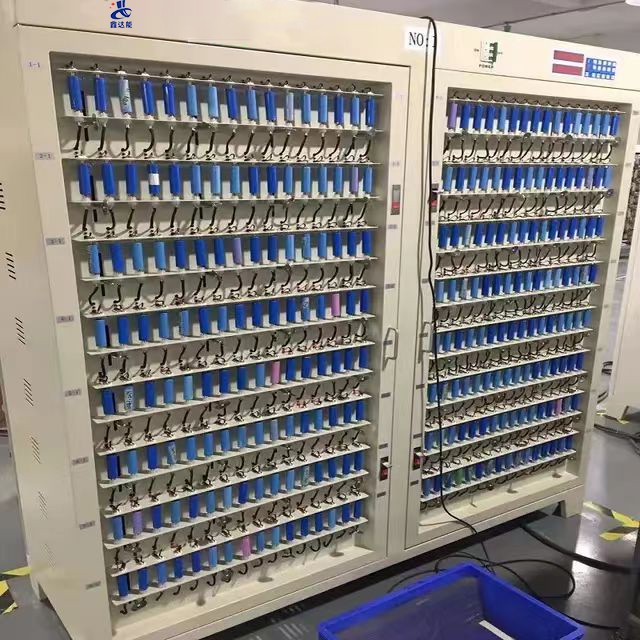

This machine is used to test the capacity of cylindrical batteries through cyclic charging and discharging tests. The whole machine has 256 channels and can test 256 cells simultaneously.
Product Description
This machine is used to test the capacity of cylindrical batteries through cyclic charging and discharging tests. The whole machine has 256 channels and can test 256 cells simultaneously.
The single point is independent, and the charging and discharging steps can be set independently for each battery test channel.
The accuracy of the equipment is 0. 05%,the data recording time is 1s / time, and the stability is high.
The software has powerful function and friendly man- machine interface.
Four wire test interface ensures high measurement accuracy.
Technical parameters
| Model | XDN-BCDS |
| Number of testing channels | 512 channels |
| Discharge/discharge current range (mA) | 5~3000mA |
| Flow measurement accuracy (mA) | 0.1%FS |
| Current resolution (mA) | 1mA |
| Voltage measurement range (mV) | 20~4950 |
| Voltage discharge range (mV) | 2000～4500 |
| Voltage measurement accuracy (mV) | 0.1%FS |
| Voltage resolution(mV) | 0.1 |
| Communication method | Cylindrical designated models: 14, 18, 21, 26, 32 series |
| Step content | Constant current charging, constant current constant voltage charging, constant current discharge, static |
| Step end condition | Current, voltage, time, capacity |
| Curve display | Charge and discharge current curve, charge and discharge voltage curve, capacity curve |
| Capacity division method | Capacity division, time division, capacity + curve division,Time + curve capacity division, capacity + voltage capacity division,fixed point voltage capacity division |
| Protection method | Overcurrent, undercurrent, overvoltage, undervoltage, overcapacity, leakage current，The charging overvoltage/discharging undervoltage adopts both hardware and software protection |
| Statistics | The open circuit voltage, average voltage, working time, current, capacity, platform capacity of each battery in each process step; detailed curves and data of each process step; statistics of the number of batteries in each capacity segment, etc. |
Product logistics packaging
a. Are you a manufacturer or a trading company?
We are a professional lithium battery tester equipment manufacturer with our own factory, which can guarantee product quality and best price.
b. What you can buy from us
PBTS series Protection board tester, BTS series comprehensive tester, BCDS series charge and discharge aging cabinet, BDS series discharger
c. How do we ensure quality
Before mass production, it is always a pre-production sample; before shipment, it is always a final inspection.
d. If I want to customize the instrument, how long is your delivery time and how long does it take
1. If it is in stock, it is 5-10 days.
2. We can provide customized services to customers. According to the specifications of the customized instrument, it usually takes 30-60 days.
e. What is the delivery method of the parcel?
1. Standard export wooden box packaging
2. Express, air freight, sea freight According to customer requirements, find the most suitable way.
