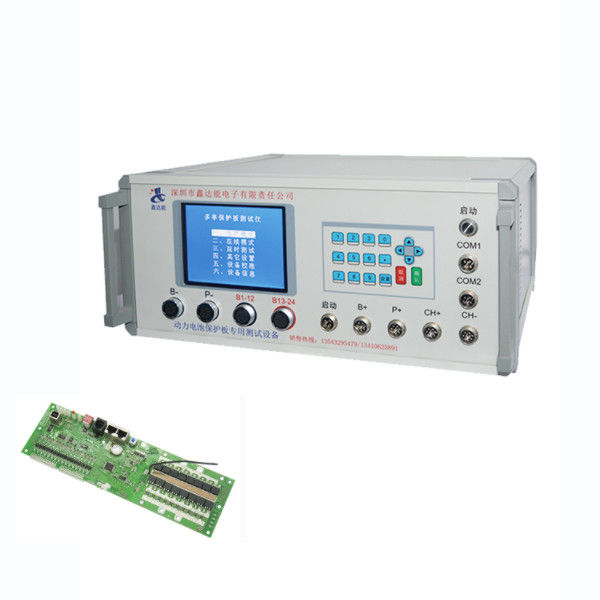

Multi String Rustproof Lithium Battery Tester , Anti Corrosion BMS Test Equipment

name

Multi String Rustproof Lithium Battery Tester , Anti Corrosion BMS Test Equipment

Brand Name:	XINDANENG
Model Number:	PBTS4-120
MOQ:	1
Price:	Negotiable
Delivery Time:	10 work day
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Multi - String Protection Board Tester

Emphasize:

Scan Start

Model Number:

PBTS 4-120

Weight:

13KG

Case Size:

430*420*190mm（W*D*H ）

Test The Number Of Strings:

1-4 Strings

Packaging Details:

The wooden case

Supply Ability:

80 Set / Month

Highlight:

Multi String Lithium Battery Tester

,

Rustproof Lithium Battery Tester

,

Anti Corrosion BMS Test Equipment

Product Description

4 Series BMS Test Equipment Multi - String Protection Board Tester Scan Start

1. Test The Type Of Protective Board

1) Negative electrode plate charge and discharge in the same port / negative electrode

2) Negative electrode plate charge and discharge split port / negative electrode

3) Positive electrode plate charge and discharge in the same port / negative electrode

Note If you have the above type of protection board , you can communicate with our company

2. Special Test Items

1) Short - circuit protection test ( subtle level )

2) Single section self - consumption test ( means true and accurate self - consumption for each section )

3) Infrared scan ( barcode scan ) The ID of each protective plate and store records

3. Equipment Parameter Description

Project Type	Test Specification	Resolution Ratio
Test The Number Of Strings	1-4 Strings
Reference Voltage	0.5-5V	±1mV
Overcharge To Protect Voltage	0.5-5V	±1mV
Overcharge Protection Is Lifted	0.5-5V	±1mV
Overdischarge Protection Voltage	0.5-5V	±1mV
Overrelease Protection Is Lifted	0.5-5V	±1mV
Overdischarge Current Protection Value	1-120A	±0.1A
Overcharge Flow Protection Value	1-40A	±0.1A
Overflow Protection Delay	0-10S	±1ms
Overcharge / Overcharge Protection Delay	0-20S	±1ms
Balanced Turn On Voltage	0.5-5V	±5mV
Balanced Turn On Current	0-200mA	±1mA
Single Section Self - Consumption	0-500uA	±1uA
Internal Circuit Resistance Test	0-200mΩ	±1mΩ
Short - Circuit Protection ( More Than 6 Strings )	0-9999uS	±1uS
Online Settings	String Communication	RS232 serial port

4. Function Introduction

Product Model	Protective Plate Tester PBTS ( M ) 4-120
Use	For 4 strings and below
Protection Plate Type	Lithium iron phosphate , ternary lithium cobalt oxide , lithium manganese oxide , etc
Module	High current module the current level is 120A , and the current accuracy is 0.1A
	Voltage module programmable output 0.5-5V , accuracy ± 1mV
