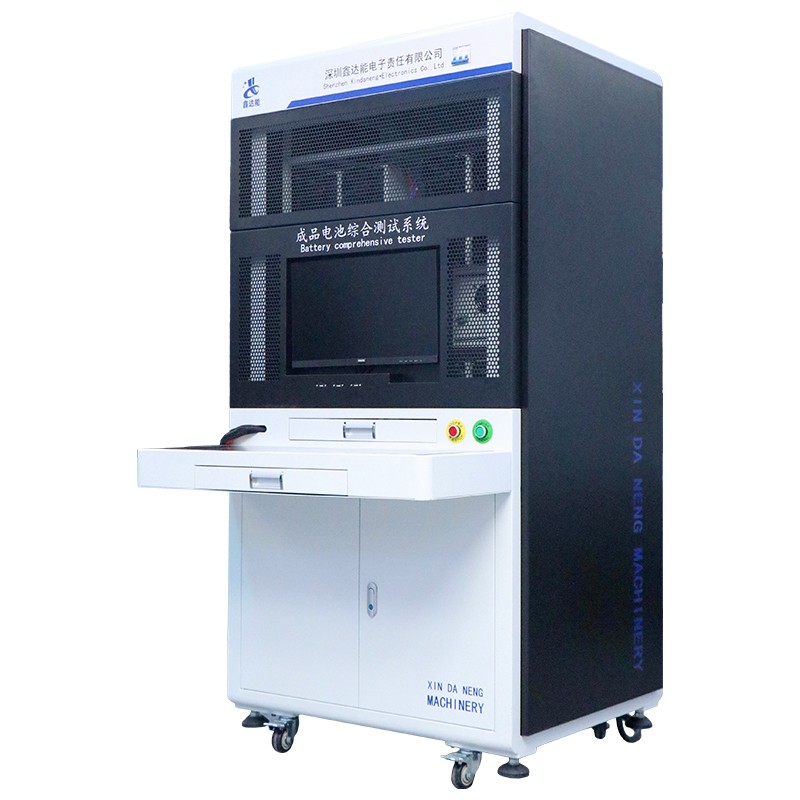

BTS100-100-300-Lithium Battery Pack Performance Tester
BTS100-100-300 Lithium Battery Pack Performance Tester applied to automotive electronics, aerospace, marine, solar energy storage, electric bicycles, electric motorcycles, backup power batteries, communication power supply, energy storage and other power battery packs in the production process of semi-finished and finished product functional verification testing and Research laboratory testing.
Scope of application
Applied to automotive electronics, aerospace, marine, solar energy storage, electric bicycles, electric motorcycles, backup power batteries, communication power supply, energy storage and other power battery packs in the production process of semi-finished products and finished products functional verification testing and scientific research laboratory testing.
Equipment environmental requirements and technical parameters
power supply: AC voltage 220V ± 10%, frequency 50Hz ± 10%;
ambient temperature: -10 ~ 45 ℃;
the environment is free from strong vibration, corrosive gas and flammable and explosive gas.
Main configuration list
No | Name | Brand | Qty | Unit |
1 | Main control boar | Self-developed | 1 | pc |
| 2 | Main control CP | ST(STMicroelectronics | 1 | pc |
| 3 | Charger module | Self-developed | 1 | pc |
| 4 | Discharger modul | Self-developed | 1 | pc |
| 5 | Internal resistance test modul | Self-developed | 1 | pc |
| 6 | Short-circuit module | Self-developed | 1 | pc |
| 7 | Slave CPU | ST(STMicroelectronics) | 1 | pc |
| 8 | Relay | Honfa/Omro | 8 | pc |
| 9 | MOS | VISHA | 100 | pc |
| 10 | Switching Power Supply | Annes | 1 | pc |
| 11 | Cas | Self-developed | 1 | pc |
| 12 | Software system | Self-developed | 1 | Set |
| 13 | Industrial Control PC | Control end 4G/256G/win10 | 1 | pc |
| 14 | Monito | Xiaomi | 1 | pc |

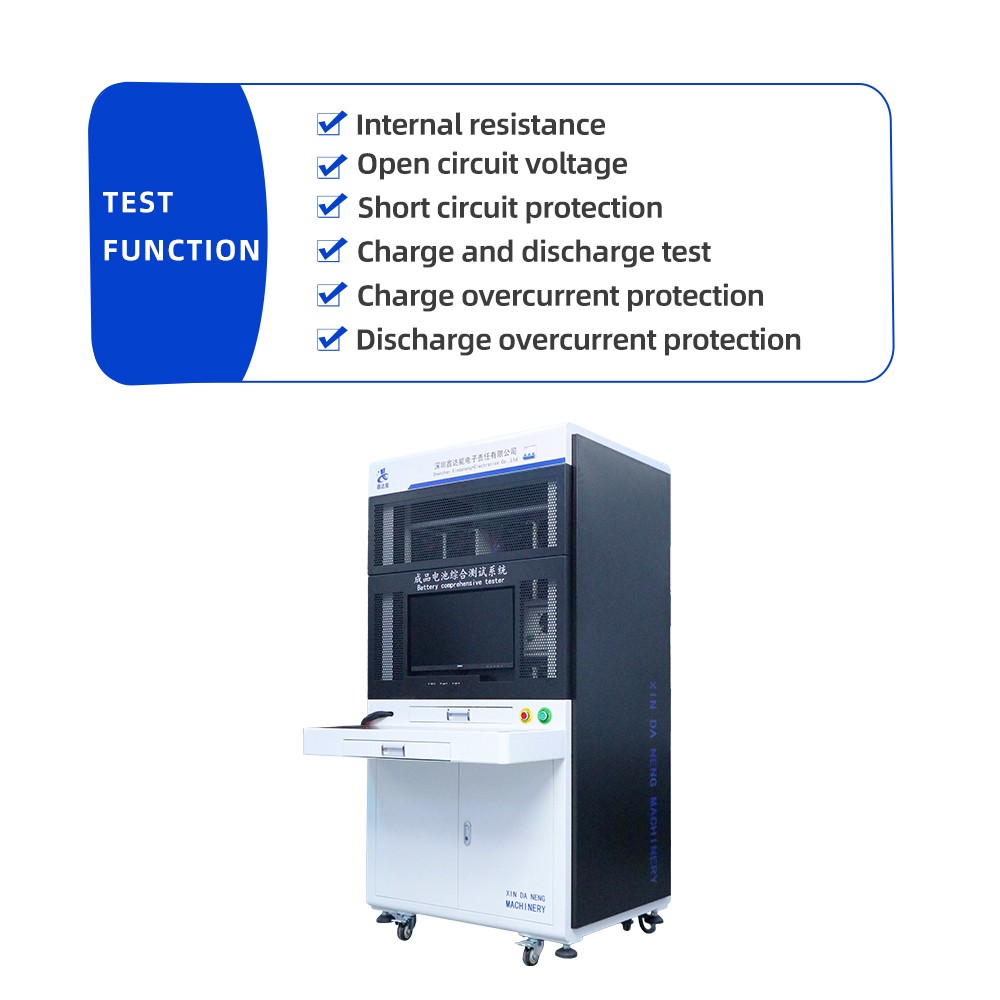

Function introduction
| Model | BTS100-100-30 |
| Purpose | Semi-finished/ finished products of battery packs below 100V |
| Basic functions | Shelving |
Battery activation (by charging,discharging,disconnecting the load, etc.) | |
| ID resistance test | |
Open circuit voltage 1 and Open circuit voltage2(Can detect the voltage of the charging port) | |
| AC internal resistance test | |
DC internal resistance test | |
Discharge test (battery PACK continuous load capacity, continuous discharge check voltage drop ΔV) | |
| Discharge overcurrent test (battery PACK discharge overcurrent protection function test, support for secondary protection test) | |
Charging test (battery PACK continuous charging function, to verify whether the charging is normal) | |
| Equipment protection function | Software protection function: power failure data protection |
Power-down protection, short-circuit protection, battery reversal, wrong connection protection |
Equipment parameter description
| Test Item | Test project | Test Range | Resolution |
| Open circuit voltage | Open circuit voltage 1 | 0-100V | 2mV |
| Open circuit voltage 2 | 0-100V | 2mV | |
| AC internal impedance | AC internal resistance test | 0-1000mΩ | 1mΩ |
| Discharge test | Starting voltage | 0-100V | 2mV |
| End voltage | 0-100V | 2mV | |
| Discharge current | 0.1-300A | 1mA | |
| Discharge time | 0-60S | 1mS | |
| Discharge over currenttest | Over discharge current | 4-300A | 1mA |
| Over current delay | 0-30S | 1mS | |
| Short circuit protection | Short circuit protection delay | 0-9999uS | 1uS |
| Charging test | Starting voltage | 10-100V | 2mV |
| End voltage | 10-100V | 2mV | |
| Charge current | 0.1A-100A | 1mA | |
| Charge time | 0-60S | 1mS | |
| Charging protection test | Charging overcurrent | 4-100A | 1mA |
| Charging delay | 0-30S | 0.1mS | |
| Resistance R1/R2 | NTC、ID | 0-1000KΩ | 0.1KΩ |
| Sustainable output power | 10KW | ||
| Sustainable load power | 30KW | ||
| Online mode | Serial communication (RS232, which can be used by multiple computers online) | ||

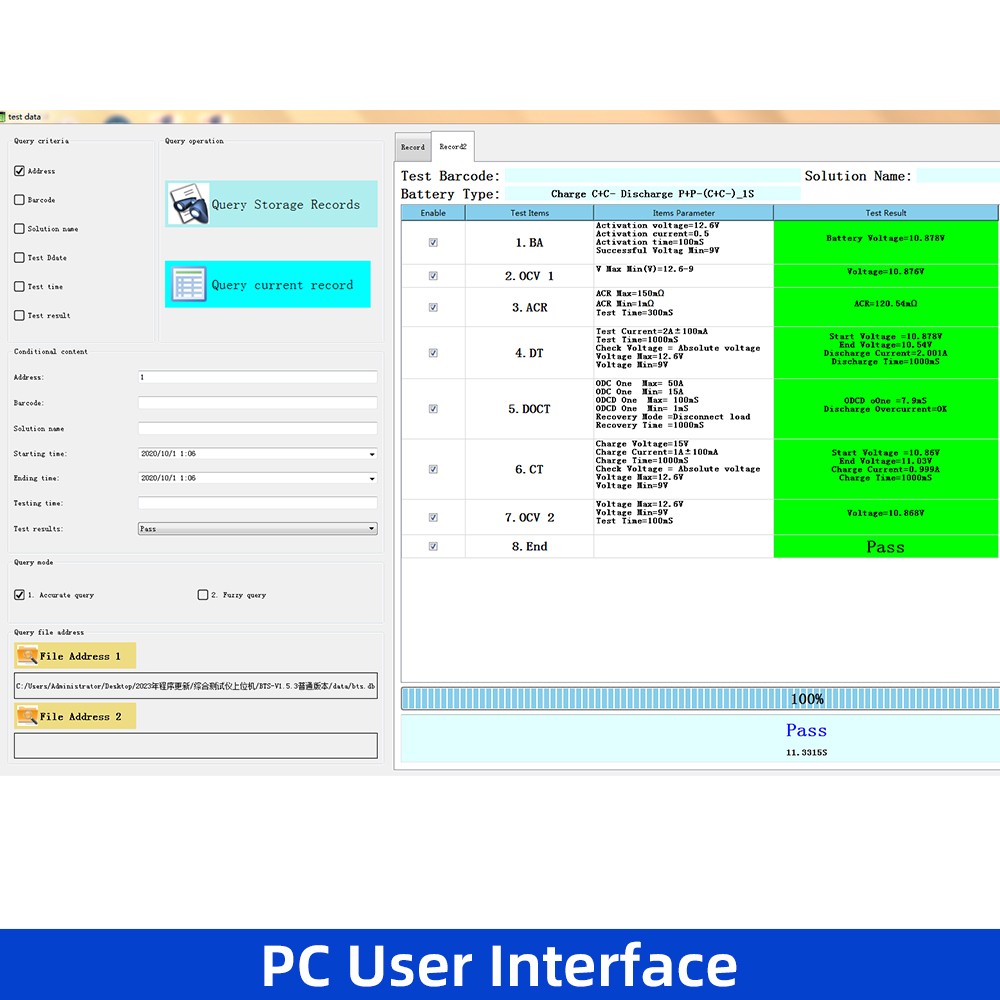

| Test data | The generated data table is automatically saved and can be exported to excel | ||
| Barcode management | Support bar code startup and binding test data | ||
| Warranty Period | 1Year | ||
| Free software upgrade service | Upgrade for free for life until the hardware is incompatible | ||
| Heat dissipation | Ventilation system and forced air cooling | ||

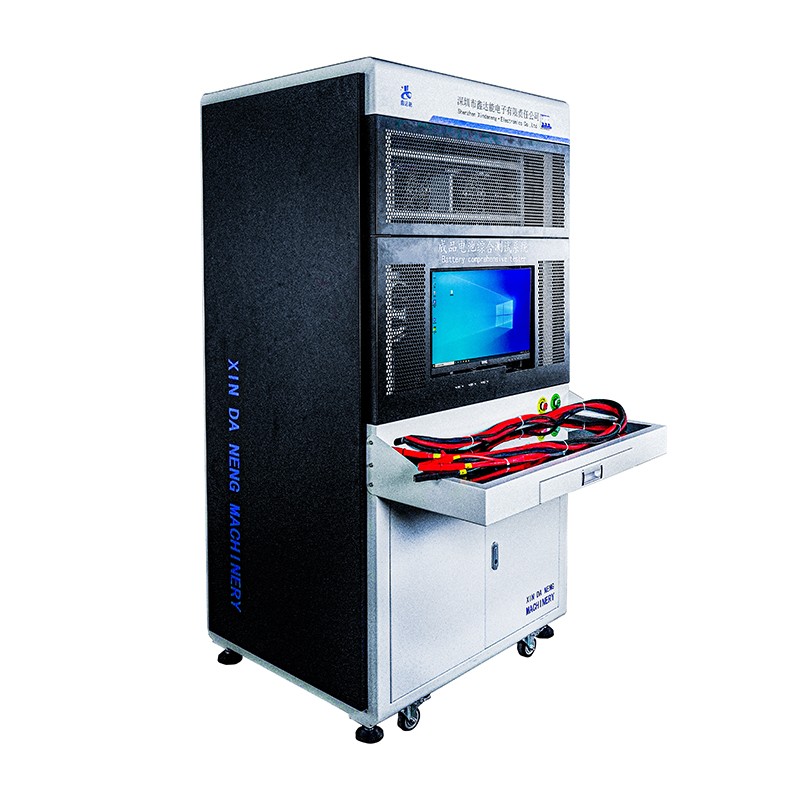

Appearance and structure
| Dimension | 1000*1150*1900mm（W*D*H ） |
| Weight | 333KG |
| Channel Qty | 1 |
| Spare Parts | Refer to random data list |
Product logistics packaging
a. Are you a manufacturer or a trading company?
We are a professional lithium battery tester equipment manufacturer with our own factory, which can guarantee product quality and best price.
b. What you can buy from us
PBTS series protection board tester, BTS series comprehensive tester, BCDS series charge and discharge aging cabinet, BDS series discharger
c. How do we ensure quality
Before mass production, it is always a pre-production sample; before shipment, it is always a final inspection.
d. If I want to customize the instrument, how long is your delivery time and how long does it take
1. If it is in stock, it is 5-10 days.
2. We can provide customized services to customers. According to the specifications of the customized instrument, it usually takes 30-60 days.
e. What is the delivery method of the parcel?
1. Standard export wooden box packaging
2. Express, air freight, sea freight According to customer requirements, find the most suitable way.
