BTS100-20-120-lithium battery comprehensive tester

Scope of application

BTS100-20-120 Lithium battery comprehensive test equipment is a kind of equipment which can test the performance of finished battery quickly and accurately，The system adopts 32-bit ARM processor，Voltage、The current is 16 bit AD converter，Compared with similar equipment, the test speed is faster、High test accuracy、Support simultaneous operation of multiple devices。Widely used in automotive electronics、Aerospace、a ship、Solar energy storage、Electric bicycle、Electric motorcycle、Backup power battery 、 Production and scientific research test of power battery pack for communication power supply.

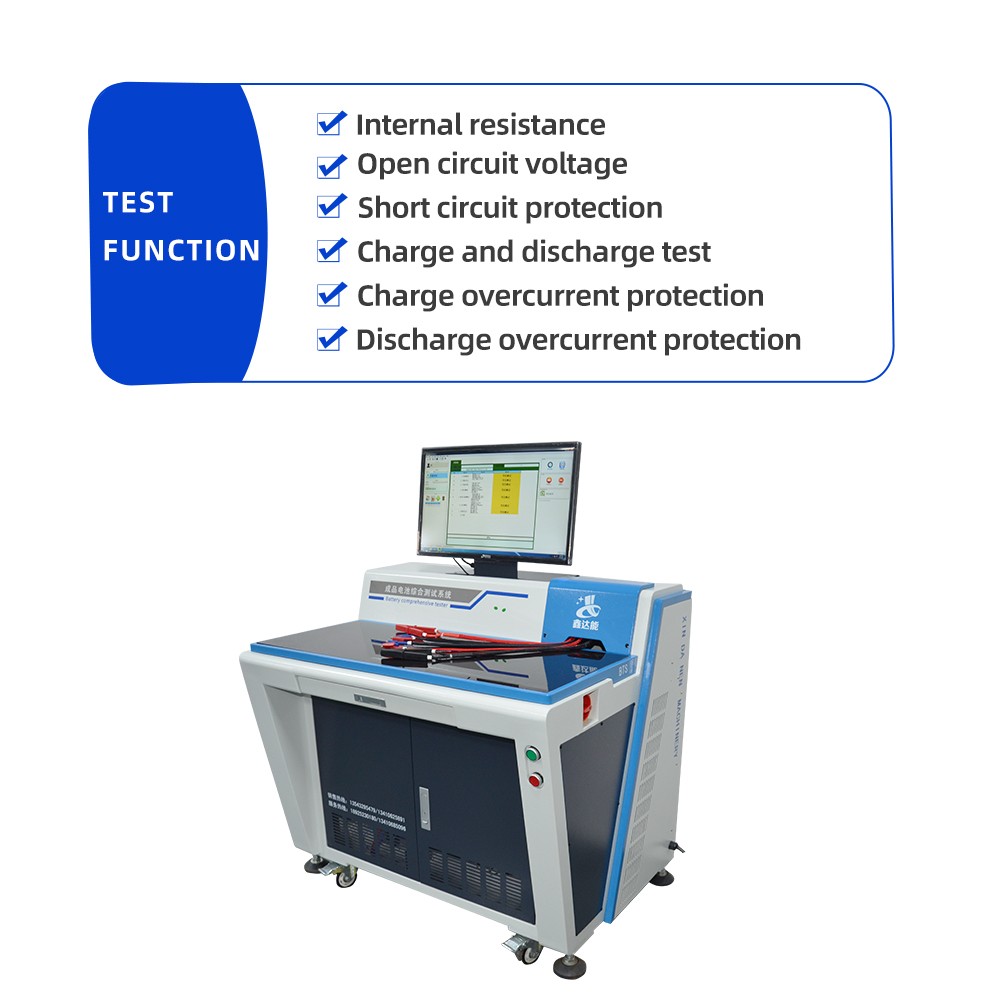

Test items

Open circuit voltage、internal impedance、Discharge test、Discharge over current test、Short circuit protection test、Charging test、Charging protection test, etc.

Main performance of test equipment

Open circuit voltage：Test the voltage at the positive and negative ends of the battery open circuit.

internal impedance：Test the resistance at both ends of the battery discharge circuit.

Discharge test：Test the continuous load capacity of the battery，Check the voltage drop of the battery for a certain discharge time.

Discharge over current test ： Test the battery high current discharge protection function ， The high current discharge of the battery triggers the discharge over-current protection function of the battery protection board.

Short circuit protection：Test the protection time of battery cut-off when the positive and negative poles of battery are short circuited （ Microsecond level）。

Charging test：Test battery continuous charging function，Test whether the battery charging function is good.

Charging over current test:Test battery high current charging protection function，Battery high current charging triggers the charging current protection function of battery protection board。

Technical parameters

Supporting equipment

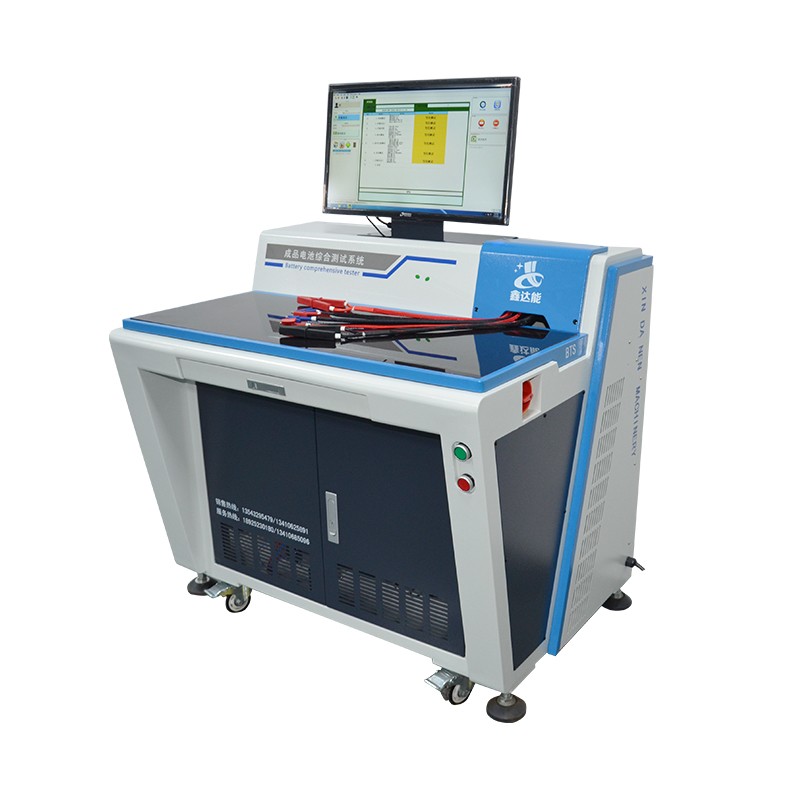

Appearance and structure

Product logistics packaging

a. Are you a manufacturer or a trading company?

We are a professional lithium battery tester equipment manufacturer with our own factory, which can guarantee product quality and best price.

b. What you can buy from us

PBTS series protection board tester, BTS series comprehensive tester, BCDS series charge and discharge aging cabinet, BDS series discharger

c. How do we ensure quality

Before mass production, it is always a pre-production sample; before shipment, it is always a final inspection.

d. If I want to customize the instrument, how long is your delivery time and how long does it take

1. If it is in stock, it is 5-10 days.

2. We can provide customized services to customers. According to the specifications of the customized instrument, it usually takes 30-60 days.

e. What is the delivery method of the parcel?

1. Standard export wooden box packaging

2. Express, air freight, sea freight According to customer requirements, find the most suitable way.
