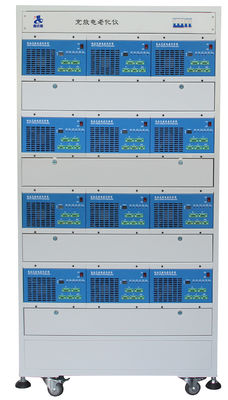

70V Battery Capacity Tester with Constant Current and Voltage Charging for Lithium Battery Packs

1. Scope Of Application

  The battery capacity tester is applied in electric tools , solar energy storage , torsion car, scooter, electric bicycle and other lithium battery pack cycle charging , discharge , battery pack function test and charge and discharge data monitoring integrated charging and discharge cycle test system .

2. Equipment Environment Requirements And Technical Parameters

1)  Power supply  AC voltage 380V ± 10% , frequency  50Hz ± 10%

2)  Ambient temperature  -10 ~ 45℃

3.  Function Introduction

1) Battery Capacity Tester Charge and discharge function  with constant current and constant voltage charging function , constant current discharge function , to the charge and discharge of the battery , record the battery capacity

2)  The battery pack tester charge and discharge interface: fully meet the requirements of battery pack charge and discharge outlet and charge and discharge outlet, namely 2 lines (P + P -), 3 lines (P + P - C - )  and positive plate charging protection , negative plate discharge protection electric tool battery ( CH + P + P - )

3)  The battery tester machine can check voltage protection  charge and discharge the battery charging protection and discharge protection function

4) The battery charge discharge tester has safety protection anti - reverse connection protection function  power loss data protection , continuous measurement , voltage upper and lower limit setting protection , safe discharge current protection

4.  Equipment Parameters Description
