Battery Pack Lithium Comprehensive Analyzer Machine Multifunction E-Bike/ E-Vehicles Battery Pack Capacity Tester

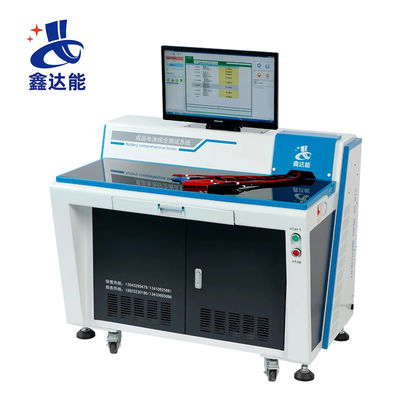

Name: Battery Pack Lithium Comprehensive Analyzer Machine Multifunction E-Bike/ E-Vehicles Battery Pack Capacity Tester
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS100-20-120
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS100-20-120
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Quality Assurance:

1 Year With Free Soft Upgrade

Function:

Open Circuit Voltage Test

Open Circuit Voltage:

0-100V

Discharge Current:

0.1-120A

Charge Current:

0-20A

Operating Temperature:

-10°C To 45°C

Power Supply:

AC 220V, 50/60Hz

Material:

Iron

Packaging Details:

The wooden case

Supply Ability:

200 Set / Month

Highlight:

Binary Channels Battery Pack Tester

Cabinet Type Battery Pack Tester

Multipurpose Battery Pack Test Equipment

Product Description

Battery Pack Lithium Comprehensive Analyzer Machine Multifunction E-Bike/ E-Vehicles Battery Pack Capacity Tester

1. Equipment Characteristics

√ The system uses 32 bit ARM processor , voltage and current use 16-bit AD converter

√ Test item Programmable control

√ The device supports charge and discharge port and tap batteries

√ The continuous output power of the equipment is 2KW

√ Equipment continuous load power is 6KW

2. Device Parameter Description

Test class	Test item	Measuring range	Resolution ratio
open circuit voltage	Open circuit voltage 1	10-100V	±2mV
	Open circuit voltage 2	10-100V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-100V	±2mV
	End voltage	0-100V	±2mV
	discharge current	0.1-60A	±1mA
	discharge time	0-30S	±1mS
Discharge perflow test	Over-discharge current	4-120A	±1mA
	Overflow delay	0-60S	±1mS
short - circuit protection	Short circuit protection delay	0-9999uS	±1uS
Charging test	starting voltage	10-100V	±2mV
	End voltage	10-100V	±2mV
	charging current	0.1-20A	±1mA
	charging interval	0-60S	±1mS
Charging protection test	Charging over the flow	0-20A	±1mA
	Charging delay	0-20S	±0.1mS
Resistance R1 / R2	NTC,ID	0-1000KΩ	±0.1KΩ

3. Product Details

Case size	(*WDH* )
Weight	144KG
Number of channels	1
Equipment accessories	Test table pen line , online data line , user manual , upper computer software

4. How to order?

Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request

We need to know the following information for your order before sending your PI
