Lithium Battery Capacity Tester 70V Multifunctional Durable 10A charge 20A discharge battery life cycler

Name: Lithium Battery Capacity Tester 70V Multifunctional Durable 10A charge 20A discharge battery life cycler
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BCDS70-10-20
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BCDS70-10-20
MOQ:	1
Price:	Negotiable
Delivery Time:	7-10 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Charge And DischargeTester

Emphasize:

Maximum Voltage Is 70V

Data Base:

Management Of The Test Data By Using The SQL Database

Working Temperature:

-10~45℃

Cabinet Size:

1130*600*1700mm（W*D*H ）

Single Channel Size:

600*450*170mm（W*D*H ）

Record Frequency:

40-60Hz

Discharge:

20A

Discharge Range:

50~20000mA

Discharge Discharge Mode:

Constant - Current Discharge

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

Sturdy Battery Capacity Tester

70V Battery Capacity Tester

Multifunctional Lithium Battery Capacity Tester

Product Description

Lithium Battery Capacity Tester 70V Multifunctional Durable 10A charge 20A discharge battery life cycler

1. Instrument Model Description

The battery charge discharge tester is applied to electric tools, solar energy storage, twisted car, scooter, electric bicycle and other lithium battery pack cycle charging, discharging, battery pack function test and charging and discharging data monitoring integrated charging and discharging cycle test system.

2. Equipment Introduction

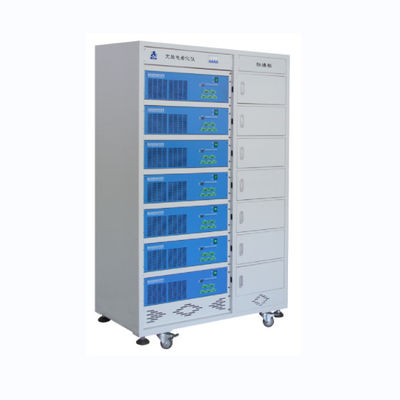

The Aging cabinet is mainly used for charging and discharge cycle test of finished lithium battery.

Test items include: battery charging protection voltage, discharge protection voltage, capacity etc

The equipment has 4 test steps , charging , discharge , shelve and cycle.

3. Equipment Parameter Description

Product model		BCDS70-10-20
Voltage	measuring range	7 ~ 70V
	precision	± ( 0.2% of reading + 0.2% of range)
Current	Charging range	50~ 10000mA
	Discharge range	50 ~ 20000mA
	precision	±(0.2% of reading + 0.2% of range )
Battery charging	Constant pressure cut - off current	Minimum 50 mA
Volume	precision	±1‰
Power	Discharge power	≤ 1400W
Time	Inspection time	Receive real - time < 2S
	Timed range	0~999 Hours / Step
Data recording interval		≥5S
Medium machine version		1.1 Series
Battery Charging	Charging mode	Constant current constant pressure charging
	cut - off condition	Voltage , current , relative time , overcharge protection
Discharge	Discharge mode	constant - current discharge
	cut - off condition	Voltage , relative time , and overdischarge protection
Circulate	Cycle measurement range	1 ~ 999 Times
	Number of single cycle steps	100
Voltage and current detection and sampling		Four - line sampling
Data base		The SQL database was used to manage the test data

4. Customer Services

1) Establish customer files

Establish customer files , and will provide relevant technical training and technical information as required by the customer.

2) Free repair for 1 year.

Products have quality problems with 1 year free warranty, the contract agreed according to the contract agreed , and long - time spare parts , software free upgrade .
