Brand Name: | XINDANENG |
Model Number: | BCDS70-05-10 |
MOQ: | 1 |
Price: | Negotiable |
Delivery Time: | In stock 7-10 working days to ship |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |

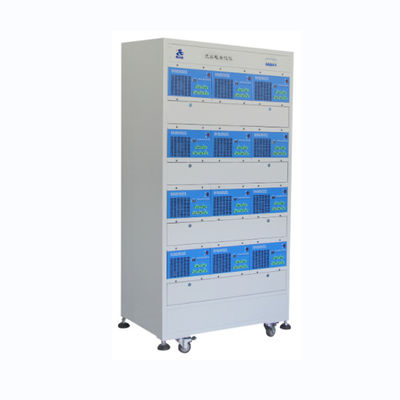

Practical Battery Charge Discharge Tester , Anticorrosive Power Bank Capacity Tester
1. Instrument Model Description
Battery charge discharge tester with model 10V5A Charge 10A Discharge machine which supports a maximum charge and discharge voltage of 70V , a maximum charging current of 05A , and a maximum discharge current of 10A
2. Equipment Environment Requirements
1) Ambient temperature -10 ~ 45℃
2) No strong vibration in the environment , no corrosive gas and flammable and explosive gas existence
3. Equipment Parameters Description
Product model | BCDS70-05-10 | |
Voltage | measuring range | 7 ~ 70V |
precision | ± ( 0.2% of reading + 0.2% of range) | |
Current | Charging range | 50~ 5000mA |
Discharge range | 50 ~ 10000mA | |
precision | ±(0.2% of reading + 0.2% of range ) | |
Battery charging | Constant pressure cut - off current | Minimum 50 mA |
Volume | precision | ±1‰ |
Power | Discharge power | ≤ 700W |
Time | Inspection time | Receive real - time < 2S |
Timed range | 0~999 Hours / Step | |
Data recording interval | ≥5S | |
Medium machine version | 1.1 Series | |
Battery Charging | Charging mode | Constant current constant pressure charging |
cut - off condition | Voltage , current , relative time , overcharge protection | |
Discharge | Discharge mode | constant - current discharge |
cut - off condition | Voltage , relative time , and overdischarge protection | |
Circulate | Cycle measurement range | 1 ~ 999 Times |
Number of single cycle steps | 100 | |
Voltage and current detection and sampling | Four - line sampling | |
Data base | The SQL database was used to manage the test data | |
Upper - computer communication mode | Based on TCP / IP protocol network port , serial port | |
Data output mode | EXCEL , TXT , Chart files |
4. Service
1) We guarantee that no matter the size of the contract , we will treat every contract seriously , fair , rigorous and honest
2) We guarantee punctuality , quality , quantity of strict implementation of the provisions of the contract
3) We guarantee to provide you with delivery , installation , commissioning , training and other services as stipulated in the contract
5.FAQ
1.Are you a manufacturer or a trading company?
We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
2.What can you buy from us?
PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series discharge instrument
3.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
4.How long is your delivery time?
1). If the goods are in stock, it is 5-10 days.
2). We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
5.How to pay?
T T, L C, etc., it is recommended to use Alibaba Trade Guarantee.
6.How is the package of goods Delivery methods?
1). Standard export wooden box packaging
2). Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
