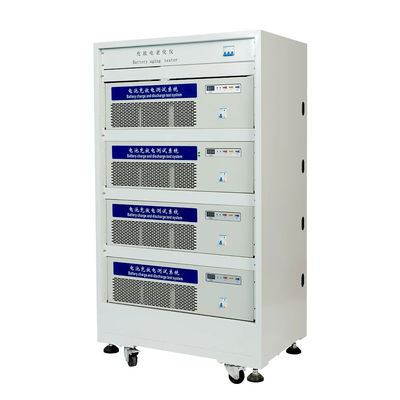

100V lithium battery tester 4-channel with explosion-proof cabinet for fast battery testing

Name: 100V lithium battery tester 4-channel with explosion-proof cabinet for fast battery testing
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BCDS100-20-40 ( 4 Channel )
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BCDS100-20-40 ( 4 Channel )
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 working days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Battery Capacity Analyzer

Stress:

4 Channel

Model Number:

BCDS100-20-40 ( 4 Channel )

After - Sales Service Provided:

Video Technical Support

Battery Placement Space:

None ( Self - Equipped Battery Rack )

Cabinet Size:

900*600*1600mm（W*D*H ）

Warranty:

1 Year

Discharge Current:

40A

Charge Current:

20A

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

100V lithium battery tester

100V Battery Tester

Product Description

100V Lithium Ion Battery Capacity Tester 4 Channel 20A 40A Charge Discharge

1. Instrument Model Description

For example , BCDS100-20-40 , which supports a maximum charge and discharge voltage of 100V , a maximum charging current of 20A , and a maximum discharge current of 40A.

2. Scope Of Application

The battery is applied in electric tools , solar energy storage , torsion car , scooter , electric bicycle and other lithium battery pack cycle charging discharge, battery pack function test and charge and discharge data monitoring integrated charging and discharge cycle test system .

3. Equipment Parameter Description

Product model		BCDS100-20-40
Voltage	measuring range	10 ~ 100V
	precision	± ( 0.2% of reading + 0.2% of range)
Current	Charging range	200~ 20000mA
	Discharge range	200 ~ 40000mA
	precision	±(0.2% of reading + 0.2% of range )
Battery charging	Constant pressure cut - off current	Minimum 50 mA
Volume	precision	±1‰
Power	Discharge power	≤ 4000W
Time	Inspection time	Receive real - time < 2S
	Timed range	0~999 Hours / Step
Data recording interval		≥5S
Medium machine version		1.1 Series
Battery Charging	Charging mode	Constant current constant pressure charging
	cut - off condition	Voltage , current , relative time , overcharge protection
Discharge	Discharge mode	constant - current discharge
	cut - off condition	Voltage , relative time , and overdischarge protection
Circulate	Cycle measurement range	1 ~ 999 Times
	Number of single cycle steps	100
Voltage and current detection and sampling		Four - line sampling
Data base		The SQL database was used to manage the test data
Upper - computer communication mode		Based on TCP / IP protocol network port , serial port
Data output mode		EXCEL , TXT , Chart files

4. FAQ

1) Pre - Sale Service ?

Professional advice , We promise to answer any professional and technical questions you ask

2) After - Sale Service ?

Free maintenance within 1 year , Products have quality problems , 1 year free warranty , the contract agreed according to the contract agreed , and long - time spare parts , software free upgrade .
