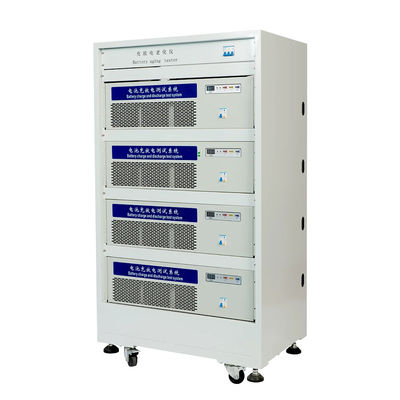

100V 20A 40A Lithium Battery Pack Aging Testing Cabinet for White Battery Placement Space and Self-Equipped Battery Rack

Name: 100V 20A 40A Lithium Battery Pack Aging Testing Cabinet for White Battery Placement Space and Self-Equipped Battery Rack
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BCDS100-20-40 ( 4 Channel )
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BCDS100-20-40 ( 4 Channel )
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 working days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Battery Capacity Analyzer

Stress:

4 Channel

Model Number:

BCDS100-20-40 ( 4 Channel )

Battery Placement Space:

None ( Self - Equipped Battery Rack )

Cabinet Size:

900*600*1600mm（W*D*H ）

Warranty:

1 Year

Color:

White

Usage:

Charge For Almost All Rechargeable Batteries Include LiFepo4,12V 24V 36V 48V 60V 72V 84V 96V Battery,Test Multi-functional Battery

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

Lithium Battery Pack Aging Testing Cabinet

20A Lithium Battery Aging Testing Cabinet

40A Lithium Battery Aging Testing Cabinet

Product Description

100V 20A 40A Lithium Battery Pack Aging Charging and Discharging Machine Aging Testing Testers Cabinet

1. Instrument Model Description

For example , BCDS100-20-40 , which supports a maximum charge and discharge voltage of 100V , a maximum charging current of 20A , and a maximum discharge current of 40A

2. Scope Of Application

THe battery tester is applied in electric tools , solar energy storage , torsion car , scooter , electric bicycle and other lithium battery pack cycle charging , discharge , battery pack function test and charge and discharge data monitoring integrated charging and discharge cycle test system .

3. Equipment Parameter Description

Product model		BCDS100-20-40
Voltage	measuring range	10 ~ 100V
	precision	± ( 0.2% of reading + 0.2% of range)
Current	Charging range	200~ 20000mA
	Discharge range	200 ~ 40000mA
	precision	±(0.2% of reading + 0.2% of range )
Battery charging	Constant pressure cut - off current	Minimum 50 mA
Volume	precision	±1‰
Power	Discharge power	≤ 4000W
Time	Inspection time	Receive real - time < 2S
	Timed range	0~999 Hours / Step
Data recording interval		≥5S
Medium machine version		1.1 Series
Battery Charging	Charging mode	Constant current constant pressure charging
	cut - off condition	Voltage , current , relative time , overcharge protection
Discharge	Discharge mode	constant - current discharge
	cut - off condition	Voltage , relative time , and overdischarge protection
Circulate	Cycle measurement range	1 ~ 999 Times
	Number of single cycle steps	100
Voltage and current detection and sampling		Four - line sampling
Data base		The SQL database was used to manage the test data
Upper - computer communication mode		Based on TCP / IP protocol network port , serial port
Data output mode		EXCEL , TXT , Chart files

4. FAQ

1.Are you a manufacturer or a trading company

We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

2.What can you buy from us

PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series discharge instrument

3.How can we guarantee quality

Always a pre-production sample before mass production;

Always final Inspection before shipment;
