Multipurpose Bms Test System Current 150A Anticorrosive Durable

Name: Multipurpose Bms Test System Current 150A Anticorrosive Durable
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: PBTS32-150
Availability: InStock

Brand Name:	XINDANENG
Model Number:	PBTS32-150
MOQ:	1
Price:	Negotiable
Delivery Time:	10 work day
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Bms Test System

Voltage:

0.5-5V

Size:

510*500*220mm

Module:

Electric Current 150A

Model Number:

PBTS32-150

Weight:

23KG

Packaging Details:

The wooden case

Supply Ability:

1000/months

Highlight:

Multipurpose Bms Test System

150A Bms Test System

Anticorrosive Bms Tester Machine

Product Description

Bms Test System 32 Series And Below Current 150A

1. Basic Introduction
It is mainly used to detect whether the functional indicators of the power battery protection board are within the parameter range, so as to provide a set of testing standards for the staff . It is suitable for testing the power battery protection panel of protection panel manufacturers and power battery manufacturers .

2. Device Parameter Description

Project type	Test Range	The Resolution Of The
Test Sequence	1-32 series
Overcharge Rotection Voltage	0.5-5V	±1mV
The Overcharge Protection Is Removed	0.5-5V	±1mV
Overdischarge Protection Voltage	0.5-5V	±1mV
The Overdischarge Protection Is Removed	0.5-5V	±1mV
Overdischarge Current Protection Value	1-150A	±0.1A
Overcharge Current Protection Value	1-40A	±0.1A
Overcurrent Protection Delay	0-10S	±1ms
Overcharge/Overdischarge Protection Delay	0-20S	±1ms
Equalized Opening Voltage	0.5-5V	±5mV
Equalized Opening Current	0-200mA	±1mA
Single Power Consumption	0-500uA	±1uA
Circuit Resistance Test	0-200mΩ	±1mΩ
Short Circuit Protection (More Than 6 Strings)	0-9999uS	±1uS
The Online Settings	A serial port communication	RS232 serial port
Testable Type	Hardware solution Protection board and most software boards ( special software boards need to be communicated )

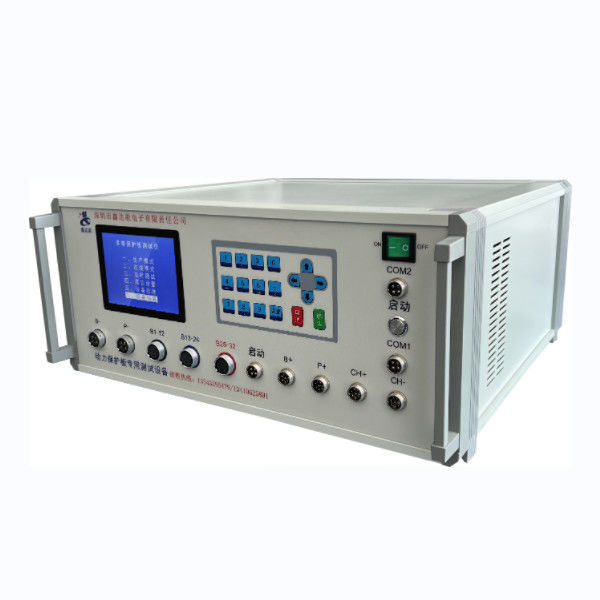

3. Product Appearance And Structure

Multipurpose Bms Test System Current 150A Anticorrosive Durable 0

Case,crate Size	510*500220mm(WDH* )
Weight	23KG
Channel	1
Equipment ccessories	Test pen line , online data line , user manual , upper computer software

The Above Pictures Are For Reference Only , In Kind Prevail !

4. Equipment advantages

1) Quick test according to the design parameters of the protection plate, set the test parameters to carry out a quick test, which is convenient for the protection plate manufacturers and power battery manufacturers to quickly test and ship on a large scale . It is suitable for the protection plate test of various hardware schemes and some software schemes
2) Accurate test it can accurately detect the precise values of various functional parameters of the power battery protection board ( the error is 5mV ), which is convenient for sample debugging and development , and provides a set of standards for rapid detection for rd personnel .
