BMS Tester
Created with Pixso. 150A Overcurrent BMS Test System for High Compatibility charge discharge testing machine

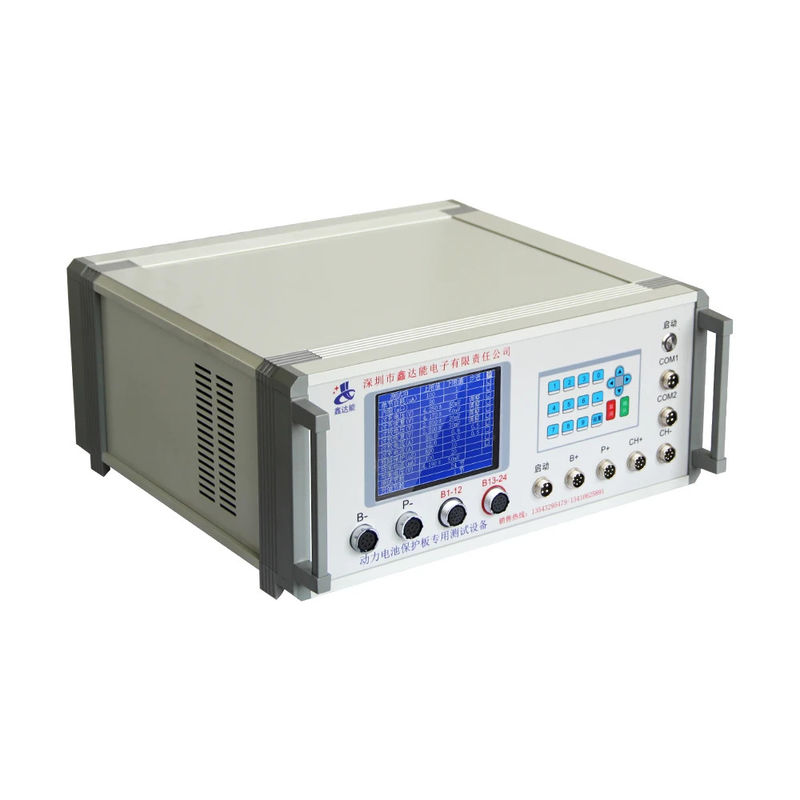

150A Overcurrent BMS Test System for High Compatibility charge discharge testing machine

Brand Name: XINDANENG
Model Number: PBTS32-150
MOQ: 1
Price: Negotiable
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Model Number:
PBTS32-150
Quality Assurance:
1 Year
Source:
AC Voltage , 220V , ± 10%
Function:
Internal Resistance Test
Module:
The Current Level Is 150A
Voltage Module:
Programmable Output Of 0.5 - 5V
Discharge Current:
150A
Packaging Details:
The wooden case
Supply Ability:
500 Set / Month
Highlight:

charge discharge BMS Test System

,

High Compatibility BMS Test System

,

150A BMS Test System

Product Description

150A Overcurrent BMS Test System for High Compatibility charge discharge tester



1. System Features


1)  Users can select the number of sections to be tested according to their own needs
2) High compatibility , suitable for all kinds of charging and discharging with the same port , different port scheme
3)  Supporting the upper computer software operation , test results can be saved by themselves
4)  Can be equipped with scanning gun operation , convenient data tracking



2. Equipment Advantage

1) Quick test  according to the design parameters of the protection board , set the test parameters for quick test , convenient for the protection board manufacturers and power battery manufacturers of large - scale quick detection and shipment , suitable for various hardware solutions and some software solutions protection board test

2) Accurate test it can accurately detect the precise value of various functional parameters of the power battery protection plate ( the error is 5mv ) , facilitate the debugging and development of samples , and provide researchers with a set of standards for rapid detection



3. Equipment Parameter Description



Project Type Test Specification Resolution Ratio
Test The Number Of Strings 1 - 32 Strings
Reference Voltage 0.5-5V ±1mV
Overcharge To Protect Voltage 0.5-5V ±1mV
Overcharge Protection Is Lifted 0.5-5V ±1mV
Overdischarge Protection Voltage 0.5-5V ±1mV
Overrelease Protection Is Lifted 0.5-5V ±1mV
Overdischarge Current Protection Value 1-200A ±0.1A
Overcharge Flow Protection Value 1-60A ±0.1A
Overflow Protection Delay 0-10S ±1ms
Overcharge / Overcharge Protection Delay 0-20S ±1ms
Balanced Turn On Voltage 0.5-5V ±5mV
Balanced Turn On Current 0-200mA ±1mA
Single Section Self - Consumption 0-500uA ±1uA
Internal Circuit Resistance Test 0-200mΩ ±1mΩ
Short - Circuit Protection ( More Than 6 Strings ) 0-9999uS ±1uS
Online Settings String Communication RS232 serial port
Test Type Hardware solution protection board and most software board ( special software board requires communication )



4. FAQ



1) How To Install And Operate the Machine By yourself ?

  When you get the machine , just power it on and the machine will work . Because this machine is installed with English software .

  You just learn how to use the software , and the complete English user manual will be available to you along with the machine



2) How long Is The Warranty?



   We are very confident in our products and we package them very well so usually you receive intact equipment

Any quality issues , which we will deal with immediately . If the equipment parts are damaged , the equipment warranty period is 1 year (12 months ) for 1 year due to non - human factors , and we will provide the replacement parts at cost.



3) How to order ?



  Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request

We need to know the following information for your order before sending your PI
