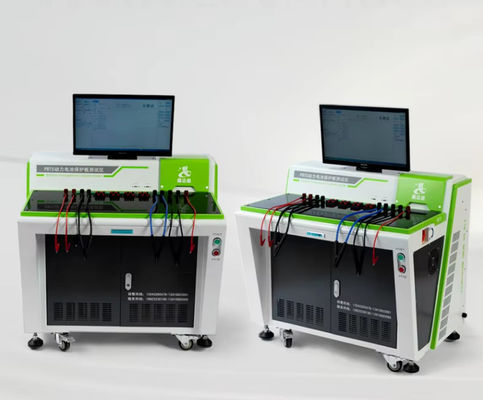

32 Series Lithium Battery Protective Plate BMS Tester with Computer Protection Board Testing Machine Equipment

Name: 32 Series Lithium Battery Protective Plate BMS Tester with Computer Protection Board Testing Machine Equipment
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: PBTS(M)32-300
Availability: InStock

Brand Name:	XINDANENG
Model Number:	PBTS(M)32-300
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 working days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Quality Assurance:

1 Year With Life-time Software Upgrade

Over Discharge Current:

300A

Short Circuit Protection Delay:

0-9999uS

Overcharge Current Protection Value:

100A

Overcurrent Protection Delay:

0-10S

Balancing Opening Voltage:

0.5-5V

Number Of Test Strings:

1-32S

Packaging Details:

The wooden case

Supply Ability:

240 Set / Month

Highlight:

Computer Protection Board BMS Tester

32 Series BMS Tester

32 Series Lithium Battery BMS Tester

Product Description

Customized 1-48 Series protection board tester BMS PCB Tester with computer sofeware

1. Equipment Characteristics

√ BMS tester Covers all functions of our PBTS device, Adjustable reference voltage, singlereference voltage can be set arbitrarily

√ BMS tester Support secondary development, realize software protection board calibration,comparison,burning function

√ BMS Testing machine Unique laboratory mode, voltage can be individually adjusted, and can be usedin conjunction with research and development

√ Battery protection board tester Equipment can support BMS temperature protection test, CAN, RS485, UARTCommunication protocol testing

√ High compatibility of equipment: can test all the hardware programs on themarket to protect the board and most of the software boards

2. Product detail

Case size	1097996 CM (*WDH* )
Weight	200KG
Number of channels	1
Equipment accessories	Test table pen line , online data line , user manual , upper computer software

3. Parameters Description

Model	PBTS(M)48-300	BMS TESTER
Test Items	Test Range	Resolution
Number of test strings	48S
Benchmark voltage	0.5/5V	1mv
Overcharge protection voltage	0.5-5V	1mv
Overcharge/discharge protection delay	0-20S	1ms
Over discharge current protection value	3-300A	0.1A
Overcharge current protection value	3-100A	0.1A
Overcurrent protection delay	0-10S	1ms
Balancing opening voltage	0.5-5V	5
Balancing opening current	0-200mA	1mA
Online settings	Serial communication	RS232 serial port
Dimension	10007001300mm(WDH )
Weight	95KG
Channel Qty	1

4. FAQ

1) How many days does it take to purchase the equipment for delivery?

We will arrange the delivery items as soon as you pay for the equipment , predict 10-15working days send to .

2)Are you a manufacturer or a trading company?

We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

3) What can you buy from us?

PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series discharge instrument

.....................................
