products details

Home Products

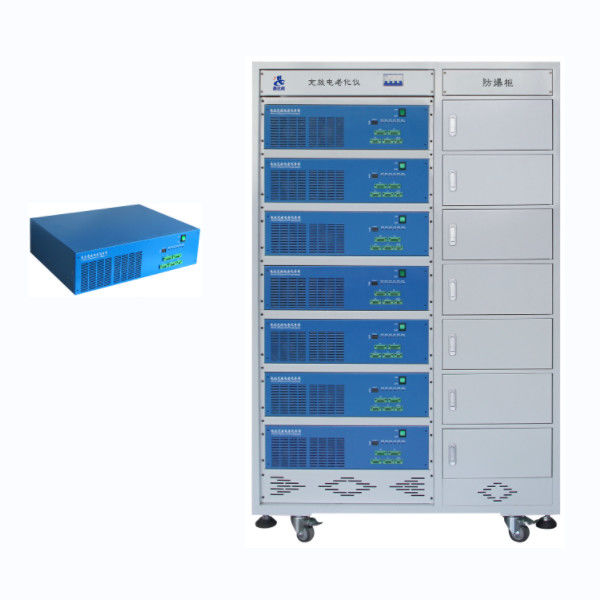

100V Battery Charge Discharge Tester for Electric Tricycle Capacity and Aging Tester

Name: 100V Battery Charge Discharge Tester for Electric Tricycle Capacity and Aging Tester
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BCDS100-10-20(1400W)
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BCDS100-10-20(1400W)
MOQ:	1
Price:	Negotiable
Delivery Time:	7-10 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Tricycle Battery Capacity Tester

Emphasize:

Down Compatible 100V

Measuring Range:

9~100V

Product Model:

BCDS100V-10A-20A(1400W)

Quality Assurance:

1 Years

Material:

Metal Box Case

Warranty:

1 Year

Charging Current:

10A

Discharging Current:

20A

Packaging Details:

The wooden case

Supply Ability:

100 Set / Month

Highlight:

Electric Tricycle Battery Charge Discharge Tester

100V Battery Charge Discharge Tester

Anti Corrosion Battery Aging Machine

Product Description

100V Battery Charge Discharge Tester for Electric Tricycle Capacity and Aging Tester

1. Equipment Introduction

The battery cahrge discharge tester has four test steps , charging , discharge , sheland cycling .

By editing the corresponding steps, the battery capacity can be tested according to the set process.

2. Scope Of Application

The charge discharge tester is applied in electric tools , electric bicycle and other lithium battery pack cycle charging , discharge , battery pack function test and charge and discharge data monitoring integrated charging and discharge cycle test system .

3. Equipment Parameter Description

Product model		BCDS100V-10A-20A(1400W)
Voltage	measuring range	9 ~ 100V
	precision	± ( 0.2% of reading + 0.2% of range)
Current	Charging range	50~ 10000mA
	Discharge range	50 ~ 20000mA
	precision	±(0.2% of reading + 0.2% of range )
Battery charging	Constant pressure cut - off current	Minimum 50 mA
Volume	precision	±1‰
Power	Discharge power	≤ 1400W
Time	Inspection time	Receive real - time < 2S
	Timed range	0~999 Hours / Step
Data recording interval		≥5S
Medium machine version		1.1 Series
Battery Charging	Charging mode	Constant current constant pressure charging
	cut - off condition	Voltage , current , relative time , overcharge protection
Discharge	Discharge mode	constant - current discharge
	cut - off condition	Voltage , relative time , and overdischarge protection
Circulate	Cycle measurement range	1 ~ 999 Times
	Number of single cycle steps	100
Voltage and current detection and sampling		Four - line sampling
Data base		The SQL database was used to manage the test data
Upper - computer communication mode		Based on TCP / IP protocol network port , serial port
Data output mode		EXCEL , TXT , Chart files

4. How long Is The Warranty?

If the equipment parts are damaged , the equipment warranty period is 1 year for 1 year due to non - human factors

and we will provide the replacement parts at cost.
