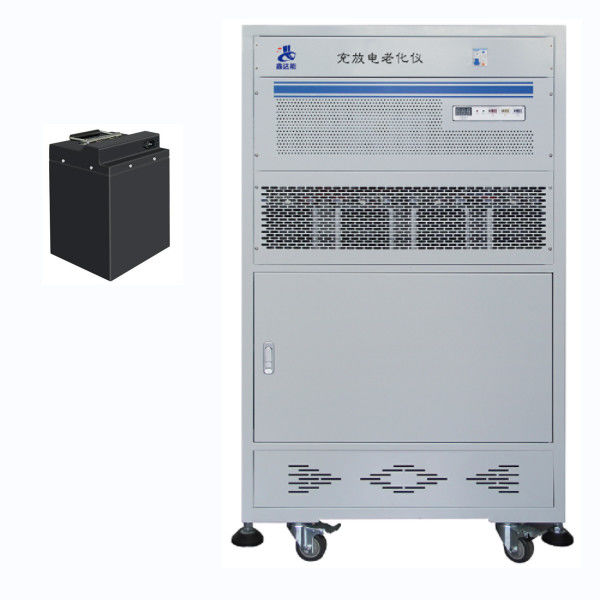

4000W Sturdy Battery Charge Discharge Tester Multifunctional Durable

Name: 4000W Sturdy Battery Charge Discharge Tester Multifunctional Durable
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BCDS100-20-40(4000W)
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BCDS100-20-40(4000W)
MOQ:	1
Price:	Negotiable
Delivery Time:	10 work day
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

4000W Charge Discharge Tester

Type:

Four Wheel Car Lithium Battery Aging

Sales Service Provided:

Video Technical Support , Free Spare Parts , Online Support

Color:

Silver Gray

Equipment Accessories:

Upcomputer Software , Test Table Pen Line

Data Base:

SQL DBM

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

4000W Battery Charge Discharge Tester

Sturdy Battery Charge Discharge Tester

Multifunctional Heavy Duty Battery Discharge Tester

Product Description

4000W Charge Discharge Tester Four Wheel Car Lithium Battery Aging

1. System Features

1) Single point control technology

2) Each channel is independent from each other

3) Anti-reverse connection protection function

4) Two communication modes: serial port and network

2. Administration Software

Based on the Windows operation interface , the SQL database is used to store the test data , which greatly facilitates the staff to query data and export data online . According to the battery bar code , time and equipment number , and the aging graph can be exported .

3. Equipment Parameter Description

Product model		BCDS100-20-40
Voltage	measuring range	10 ~ 100V
	precision	± ( 0.2% of reading + 0.2% of range)
Current	Charging range	200~ 20000mA
	Discharge range	200 ~ 40000mA
	precision	±(0.2% of reading + 0.2% of range )
Battery charging	Constant pressure cut - off current	Minimum 50 mA
Volume	precision	±1‰
Power	Discharge power	≤ 4000W
Time	Inspection time	Receive real - time < 2S
	Timed range	0~999 Hours / Step
Data recording interval		≥5S
Medium machine version		1.1 Series
Battery Charging	Charging mode	Constant current constant pressure charging
	cut - off condition	Voltage , current , relative time , overcharge protection
Discharge	Discharge mode	constant - current discharge
	cut - off condition	Voltage , relative time , and overdischarge protection
Circulate	Cycle measurement range	1 ~ 999 Times
	Number of single cycle steps	100
Voltage and current detection and sampling		Four - line sampling
Data base		The SQL database was used to manage the test data
Upper - computer communication mode		Based on TCP / IP protocol network port , serial port
Data output mode		EXCEL , TXT , Chart files

4. FAQ

1) How to order ?

Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request

We need to know the following information for your order before sending your PI

2) How long Is The Warranty ?

We are very confident in our products and we package them very well so usually you receive intact equipment Any quality issues , which we will deal with immediately . If the equipment parts are damaged , the equipment warranty period is 1 year (12 months ) for 1 year due to non - human factors , and we will provide the replacement parts free of charge
