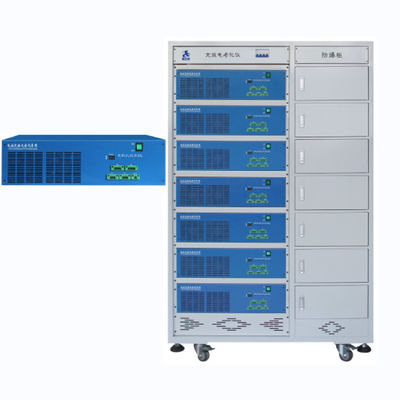

Battery Aging Machine with 70V Battery Tester For Deep Cycle Battery tester 1400W

Name: Battery Aging Machine with 70V Battery Tester For Deep Cycle Battery tester 1400W
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BCDS70-10-20
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BCDS70-10-20
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 working days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Battery Charge Discharge Tester

Emphasize:

Discharge Power 1400W

Model Number:

70V 10A 20A

Charging Current:

10000mA

Discharge Current:

20000mA

Temperature:

-10～45℃

Warranty:

1 Year

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

Stable Battery Aging Machine

Anticorrosive Battery Aging Machine

70V Battery Tester For Deep Cycle Battery

Product Description

Battery Aging Machine with 70V Battery Tester For Deep Cycle Battery tester 1400W

1. Fundamental Characteristics

1) The battery tester with the PC software, USB hub and router.

2) The aging system uses a 32- bit ARM chip with a reaction speed block and high voltage and current measurement accuracy Pass data via PS232 or network.

3) Voltage can be set at 10-100V , charging current 0-10A , and discharge current 0-20A

4) Through the charge and discharge cycle of the battery , the battery can detect whether the charge and discharge protection of the battery is normal.

2. About The Introduction

The device has four test steps , charging,discharging, shelving and cycling .

By editing the corresponding steps , the battery can follow the set process .

3. Equipment Parameter Description

Product model		BCDS70-10-20
Voltage	measuring range	7 ~ 70V
	precision	± ( 0.2% of reading + 0.2% of range)
Current	Charging range	50~ 10000mA
	Discharge range	50 ~ 20000mA
	precision	±(0.2% of reading + 0.2% of range )
Battery charging	Constant pressure cut - off current	Minimum 50 mA
Volume	precision	±1‰
Power	Discharge power	≤ 1400W
Time	Inspection time	Receive real - time < 2S
	Timed range	0~999 Hours / Step
Data recording interval		≥5S
Medium machine version		1.1 Series
Battery Charging	Charging mode	Constant current constant pressure charging
	cut - off condition	Voltage , current , relative time , overcharge protection
Discharge	Discharge mode	constant - current discharge
	cut - off condition	Voltage , relative time , and overdischarge protection
Circulate	Cycle measurement range	1 ~ 999 Times
	Number of single cycle steps	100
Voltage and current detection and sampling		Four - line sampling
Data base		The SQL database was used to manage the test data
Upper - computer communication mode		Based on TCP / IP protocol network port , serial port
Data output mode		EXCEL , TXT , Chart files

4. FAQ

1) Is there an after - sales guarantee ?

Products have quality problems , 1 year free warranty , the contract agreed according to the contract agreed , and long - time spare parts , software free upgrade .

2) How to order ?

Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request
