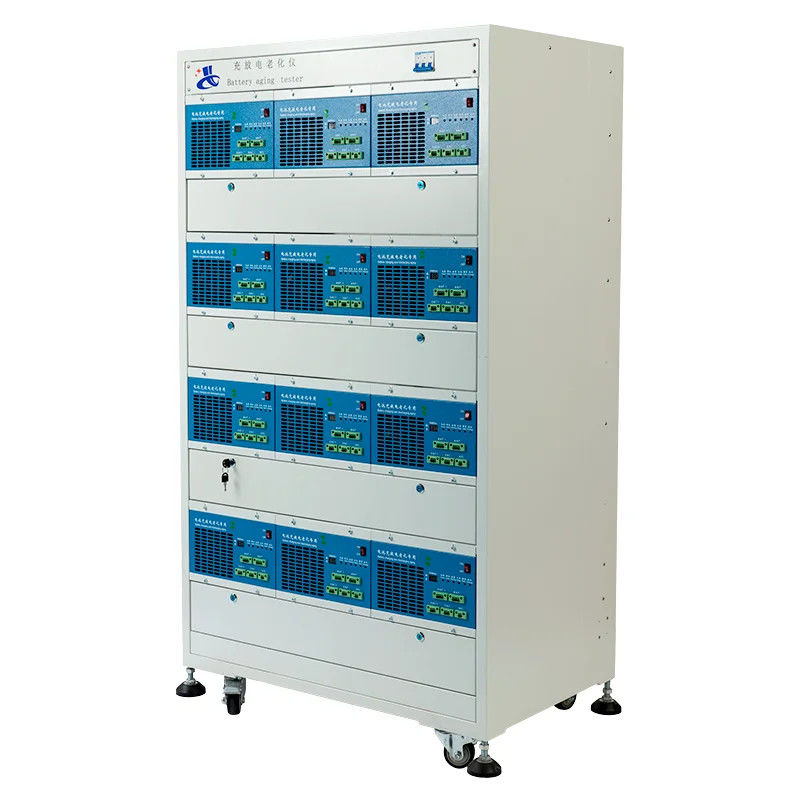

12 Channels BCDS30-10-20 Battery Charge Discharge Tester with Overcharge Protection Cut-Off and 10A Charging Current

name

12 Channels BCDS30-10-20 Battery Charge Discharge Tester with Overcharge Protection Cut-Off and 10A Charging Current

Brand Name:	XINDANENG
Model Number:	BCDS30-10-20
MOQ:	1
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Charge And Discharge Aging Device

Emphasize:

30V

Number Of Channels:

12 Channels

Data Base:

The SQL Database Management Was Used

Upper - Computer Communication Mode:

Based On The TCP / IP Protocol Network Port

Warranty:

1 Year

Discharge Current:

20A

Charging Current:

10A

Packaging Details:

The wooden case

Supply Ability:

200 Set / Month

Highlight:

10A Battery Charge Discharge Tester

,

12 Channels Battery Charge Discharge Tester

,

Overcharge Protection Battery Charge Discharge Tester

Product Description

Overcharge Protection Cut-Off Condition BCDS30-10-20 Battery Charge Discharge Tester

1. Scope Of Application

The battery charge discharge tetster is applied in electric tools , solar energy storage , torsion car and other lithium battery pack cycle charging , discharge , battery pack function test

2. Temperature

Ambient temperature -10 ~ 45℃

3. Equipment Parameter Description

Product model		BCDS30-10-20
Voltage	measuring range	4.5 ~ 30V
	precision	± ( 0.2% of reading + 0.2% of range)
Current	Charging range	50~ 10000mA
	Discharge range	50 ~ 20000mA
	precision	±(0.2% of reading + 0.2% of range )
Battery charging	Constant pressure cut - off current	Minimum 50 mA
Volume	precision	±1‰
Power	Discharge power	≤ 600W
Time	Inspection time	Receive real - time < 2S
	Timed range	0~999 Hours / Step
Data recording interval		≥5S
Medium machine version		1.1 Series
Battery Charging	Charging mode	Constant current constant pressure charging
	cut - off condition	Voltage , current , relative time , overcharge protection
Discharge	Discharge mode	constant - current discharge
	cut - off condition	Voltage , relative time , and overdischarge protection
Circulate	Cycle measurement range	1 ~ 999 Times
	Number of single cycle steps	100
Voltage and current detection and sampling		Four - line sampling
Data base		The SQL database was used to manage the test data
Upper - computer communication mode		Based on TCP / IP protocol network port , serial port
Data output mode		EXCEL , TXT , Chart files

4. How to order ?

Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request

We need to know the following information for your order before sending your PI
