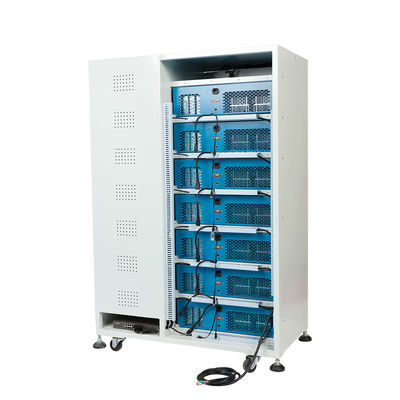

Customized Group 7 Channels 100V/10A /20A Battery Aging Test Machine for electric vehicles

Name: Customized Group 7 Channels 100V/10A /20A Battery Aging Test Machine for electric vehicles
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BCDS100-10-20(2000W)
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BCDS100-10-20(2000W)
MOQ:	1
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Charge And Discharge Tester

Discharge Discharge Mode:

Constant - Current Discharge

Warranty:

12 Months With Life -time Free Upgrade

Cabinet Size:

113*60*171CM

Weight:

270KG

Usage:

Universal Testing Machine,Test Multi-functional Battery

Power Supply:

AC 220V±10%

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

20A Battery Aging Test Machine

10A Battery Aging Test Machine

100V Battery Aging Test Machine

Product Description

Customized 7 Channels 100V/10A /20A Battery Aging Test Machine for electric vehicles

1. Specification

For example , BCDS100-10-20, which supports a maximum charge and discharge voltage of 100V , a maximum charging current of 10A , and a maximum discharge current of 20A.

2. About the Introductions

2.1 Single-channel power supply: AC voltage 220V±10% , frequency: 50Hz ±10%;
2.2 The whole cabinet power supply: AC voltage 380V ±10%, frequency: 50Hz ±10%;
2.3 Ambient temperature: 0～45℃;
2.4 environment without strong vibration, no corrosive gases and flammable and explosive gas presence.

3. Equipment Parameters Description

Product model		BCDS100-10-20
Voltage	measuring range	10 ~ 100V
	precision	± ( 0.2% of reading + 0.2% of range)
Current	Charging range	50~ 10000mA
	Discharge range	50 ~ 20000mA
	precision	±(0.2% of reading + 0.2% of range )
Battery charging	Constant pressure cut - off current	Minimum 50 mA
Volume	precision	±1‰
Power	Discharge power	≤ 1400W
Time	Inspection time	Receive real - time < 2S
	Timed range	0~999 Hours / Step
Data recording interval		≥5S
Medium machine version		1.1 Series
Battery Charging	Charging mode	Constant current constant pressure charging
	cut - off condition	Voltage , current , relative time , overcharge protection
Discharge	Discharge mode	constant - current discharge
	cut - off condition	Voltage , relative time , and overdischarge protection
Circulate	Cycle measurement range	1 ~ 999 Times
	Number of single cycle steps	100
Voltage and current detection and sampling		Four - line sampling
Data base		The SQL database was used to manage the test data

4. Introduction to the software and interface

The upper computer software is an inseparable part of the charge/discharge test system, which can be installed on computers with operating systems such as win2000/winXP/win7/win10, based on the Windows operating interface, and adopts the SQL database to store the test data, which is very convenient for the staff to query the data on-line and export the data, and it is also convenient for the staff to check the charge/discharge and aging curve graphs according to the battery barcode, time, and equipment number, and it is also possible to export the curve graphs.
It can view the charging/discharging curve by battery barcode, time and device number, and export the curve at the same time.
