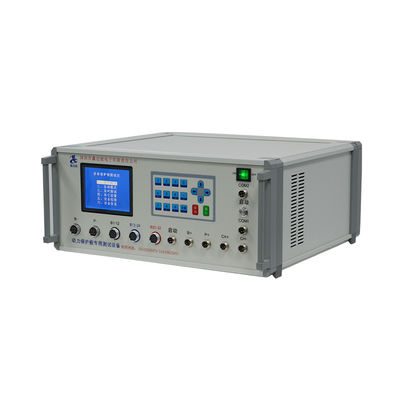

16 Strings 120A Bms Testing Machine Silver Gray Color Multipurpose for lithium battery pack

Name: 16 Strings 120A Bms Testing Machine Silver Gray Color Multipurpose for lithium battery pack
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: PBTS16-120
Availability: InStock

Brand Name:	XINDANENG
Model Number:	PBTS16-120
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Number:

PBTS16-120

Size:

430*420*190mm（W*D*H ）

Resolution Ratio:

RS232 Serial Port

String Number:

1-16 Strings

Frequency:

50Hz±10%

Warranty:

One Year Limited Warranty With Lifetime Support

Application:

Battery Pack Assembly Line,Battery And Energy Industrial

Material:

Iron

Packaging Details:

The wooden case

Supply Ability:

500 Set / Month

Highlight:

16 Strings Bms Testing Machine

Silver Gray Bms Testing Machine

Multipurpose Battery Management System Testing

Product Description

16 Strings Bms Testing Machine 120A excessive flow computer software

1. Scope of application

Applied to lithium battery protection plate safety testing, testing the protection plate functional indicators are within reasonable parameters, providing staff with a set of testing standards, improving production efficiency, and facilitate quality control.Compatible with the common types of protection plate on the market: positive with the port (split port), negative with the port (split port), positive charging protection negative discharge protection, and so on.The product is mainly used in production testing, incoming material testing, quality control, R & D testing, etc.

2. Equipment Parameter Description

Project Type	Test Specification	Resolution Ratio
Test The Number Of Strings	1-16Strings
Reference Voltage	0.5-5V	±1mV
Overcharge To Protect Voltage	0.5-5V	±1mV
Overcharge Protection Is Lifted	0.5-5V	±1mV
Overdischarge Protection Voltage	0.5-5V	±1mV
Overrelease Protection Is Lifted	0.5-5V	±1mV
Overdischarge Current Protection Value	1-120A	±0.1A
Overcharge Flow Protection Value	1-40A	±0.1A
Overflow Protection Delay	0-10S	±1ms
Overcharge / Overcharge Protection Delay	0-20S	±1ms
Balanced Turn On Voltage	0.5-5V	±5mV

Name	PBTS16-120
Number of test strings	1-16
Basic functions	Internal resistance test
	Individual Overcharge and over discharge voltage
	Individual Overcharge and Discharge Recovery Voltage
	Overcharge/discharge protection delay
	Charge/discharge protection current
	Charge/discharge over current delay
	Single secondary overcharge and over discharge delay
Special test items	Single section self-consumption test(Refers to the true and accurate power consumption per section)
	Equalizing current and equalizing voltage(It can accurately grasp the balance current and the balance open voltage
	Test Order Support Adjustment
Test program startup	Support barcode scanning self-start/manual start
Test Data	Data sheets can be generated and saved for easy product traceability
application	Measurement of lithium battery protection plate of ternary material, lithium iron phosphate, lithium cobalt, lithium manganese and so on.
protective function	Hardware boards and most software boards (special software boards BMS need to communicate)
Module	High current module: current level is 120A, current accuracy ±0.1A
	Voltage module: programmable output 0.5-5V, accuracy ±5mV
	Short-circuit module: super capacitor instantly provides 400A short-circuit current, test out the short-circuit delay time

3. Product Mix

Case Size	510500220mm(WDH )
weight	23KG
Number Of Channels	1
Equipment Accessories	Test table pen line , online data line , user manual , upper computer software

3. BMS tester

A BMS tester, also known as a Battery Management System tester, is a crucial tool used to evaluate the performance and functionality of a BMS.

A BMS tester is a specialized device designed to simulate various operating conditions of a battery pack to assess the functionality of its Battery Management System (BMS).

The BMS is responsible for monitoring and controlling key parameters such as voltage, current, temperature, and state of charge (SOC) to ensure safe and efficient battery operation.

BMS testers help validate the accuracy of these measurements, evaluate fault detection mechanisms, and verify the effectiveness of cell balancing and protection features.

They are essential in the development, production, and maintenance of battery systems for applications like electric vehicles, renewable energy storage, and portable electronics.

4. FAQ

1.Are you a manufacturer or a trading company

We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

2.What can you buy from us

PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series discharge instrument

3.How can we guarantee quality

Always a pre-production sample before mass production; Always final Inspection before shipment;

4.How long is your delivery time?

1). If the goods are in stock, it is 5-10 days.

2). We can provide customized services for our customers.

It usually takes 30-60 days depending on the specifications of the custom instrument.

5.How to pay

T T, L C, etc., it is recommended to use Alibaba Trade Guarantee.

6.How is the package of goods Delivery methods

1). Standard export wooden box packaging

2). Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
