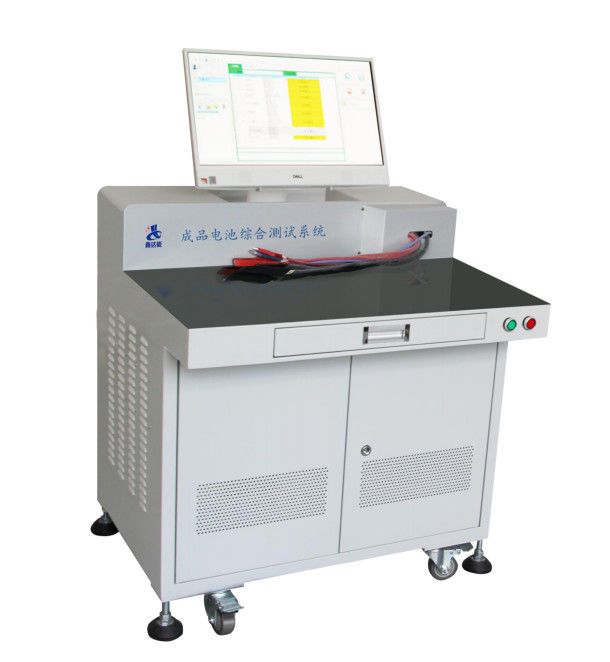

High Accuracy 2kw 100V Battery Pack Tester for Automotive Electronics

Name: High Accuracy 2kw 100V Battery Pack Tester for Automotive Electronics
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS100-20-120
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS100-20-120
MOQ:	1
Price:	Can discuss
Delivery Time:	10-15 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Test Voltage:

100V

Resolution Ratio:

±2mV

After - Sales Service:

Video Technical Support

Color:

White

Size:

800*700*1200mm

Product Name:

Battery Pack Tester

Function:

Battery Analyzer,Test Capacity Voltage Current

Power Supply:

220V 50Hz

Charge Current:

20A

Discharge Current:

100A

Packaging Details:

wooden case

Supply Ability:

200 set month

Highlight:

2KW Rapid Test Battery Tester

Lithium Rapid Test Battery Tester

Multiscene Lithium Battery Testing Equipment

Product Description

High Accuracy 2kw 100V Battery Pack Tester for Automotive Electronics

1. Product features

-The continuous output power of the equipment is 2KW

- Equipment continuous load power 12KW

-Maximum test voltage 100V(customizable according to requirements

- Programmabie control of test items

-Support one host computer software to control multiple devices

-The device supports serial port and network communication with the host computer

Battery pack tester is used in the production process of automotive electronics , aerospace , shipbuilding , solar energy storage , electric bicycle , electric motorcycle , backup power supply battery and communication power supply.

2. Product details

Product Model	Battery integrated tester BTS100-20-120
Use	For semi - finished products and finished product testing of battery pack below 100V
Basic Function	Open circuit voltage test
	Communication internal resistance test
	ID resistance test
	NTC resistance test
Charging Performance Test	Battery PACK continuous charging function , to verify that the charging is normal
	Battery PACK charge over - current protection function test
Discharge Performance Test	Battery PACK continuous load capacity , continuous discharge check voltage drop
	Battery PACK discharge overcurrent protection function test
Short Circuit Protection Test	Test battery positive and negative short - connected battery cut - off protection time ( subtle level )
Equipment Protection Function	Software protection function power data protection

3. FAQ

1) How to install and operate the machine by yourself ?

When you get the machine , just power it on and the machine will work . Because this machine is installed with English software .

You just learn how to use the software , and the complete English user manual will be available to you along with the machine.

2) How long is the warranty ?

If the equipment parts are damaged , the equipment warranty period is 1 year (12 months ) for 1 year due to non - human factors , and we will provide the replacement parts at cost.

3) How to order ?

Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request

We need to know the following information for your order before sending your PI
