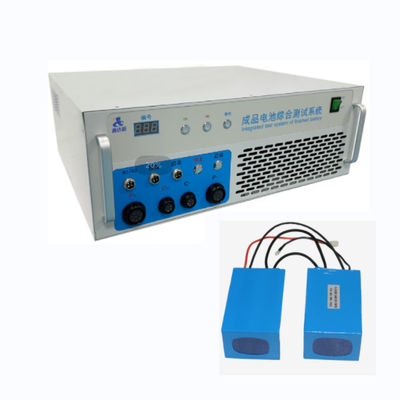

50V60A Discharge Programmable And Controlled For Energy Storage with AC220V Power Supply

Name: 50V60A Discharge Programmable And Controlled For Energy Storage with AC220V Power Supply
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS50-05-60
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS50-05-60
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Battery Pack Tester

Weight:

24kg

NTC 、ID:

0-1000KΩ

Upgrade The Service:

Lifetime Free Upgrade

Product Name:

Battery Testing System

Function:

Battery Analyzer

Charge Max Current:

Discharge Max Current:

60A

Packaging Details:

The wooden case

Supply Ability:

280 Set / Month

Highlight:

Bms Battery Pack Tester

Programmable Battery Pack Tester

Controlled Li Ion Bms

Product Description

Battery Pack Tester Programmable And Controlled For Energy Storage with AC220V Power Supply

1. Equipment Characteristics

√ Equipment debugging is simple , easy to learn and easy to understand

√ Support one upper - computer computer software to control multiple devices

√ Battery pack load with load test

√ Battery pack high - current protection test

√ Battery authenticity short - circuit protection test

√ Battery pack continuous charging test

2. Device Parameter Description

Test class	Test item	Measuring range	Resolution ratio
open circuit voltage	Open circuit voltage 1	0-50V	±2mV
	Open circuit voltage 2	0-50V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	discharge current	0.1-60A	±1mA
	discharge time	0-60S	±1mS
Discharge perflow test	Over-discharge current	4-60A	±1mA
	Overflow delay	0-20S	±1mS

Sustainable output power	0.25KW
Sustainable load power	3KW
Online mode	Serial communication (RS232, which can be used by multiple computers online)
Test data	The generated data table is automatically saved and can be exported to excel
Barcode management	Support bar code startup and binding test data
Warranty Period	1Year
Free software upgrade service	Upgrade for free for life until the hardware is incompatible
Heat dissipation	Ventilation system and forced air cooling

3. Product Details

Case size	580*500220mm(WDH* )
Weight	26KG
Number of channels	1
Equipment accessories	Test table pen line , online data line , user manual , upper computer software

4. Test Projects

Mainly test the open circuit voltage , AC internal resistance , discharge test , discharge overcurrent test , short circuit protection , charging test , charge overcurrent test , resistance R1 / R2 and other tests

5. FAQ

1.Are you a manufacturer or a trading company?

We are a professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

2.What can you buy from us ?

PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series discharge instrument

3.How can we guarantee quality ?

Always a pre-production sample before mass production; Always final Inspection before shipment.
