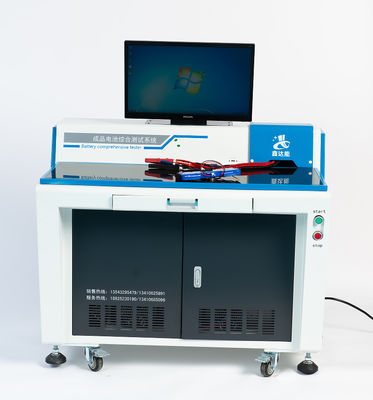

Discharge Perflow Test Battery Pack Tester for Automotive Electronics Aerospace Shipbuilding Solar Energy Storage and More

Name: Discharge Perflow Test Battery Pack Tester for Automotive Electronics Aerospace Shipbuilding Solar Energy Storage and More
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS100-20-200
Availability: InStock

Model Number:	BTS100-20-200
MOQ:	1
Price:	Can discuss
Delivery Time:	In stock 7-10 working days to ship
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Function:

Fast Test Battery

Type:

Rapid Battery Tester

Voltage:

10-100V

Working Temperature:

-10~55℃

Cable Length:

Warranty:

12 Months

Packaging Details:

wooden case

Supply Ability:

200 set month

Highlight:

Multipurpose Rapid Test Battery Tester

10V Rapid Test Battery Tester

100V Electric Car Battery Tester

Product Description

Discharge Perflow Test Battery Pack Tester for Automotive Electronics Aerospace Shipbuilding Solar Energy Storage and More

It is used in the production process of automotive electronics , aerospace , shipbuilding , solar energy storage , electric bicycle , electric motorcycle , backup power supply battery and communication power supply

Test Class		Test item	Measuring range		Resolution ratio
Open Circuit Voltage		Open circuit voltage 1	10-100V		±2mV
		Open circuit voltage 2	10-100V		±2mV
Communication internal resistance		Communication internal resistance test	0-1000mΩ		±1mΩ
Discharge test		starting voltage	0-100V		±2mV
		End voltage	0-100V		±2mV
		discharge current	0.1-100A		±1mA
		discharge time	0-60S		±1mS
Discharge perflow test		Over-discharge current	10-200A		±1mA
		Overflow delay	0-30S		±1mS
Short - circuit protection		Short circuit protection delay	0-9999uS		±1uS
Charging Test		starting voltage	10-100V		±2mV
		End voltage	10-100V		±2mV
		charging current	0.1A-20A		±1mA
		charging interval	0-60S		±1mS
Charging Protection Test		Charging over the flow	4-20A		±1mA
		Charging delay	0-20S		±0.1mS
Resistance R1 / R2	NTC,ID			0-1000KΩ		±0.1KΩ
Sustainable output power				2KW
Sustainable load power				6KW
on - line mode				Serial communication ( RS232 , multiple online )
test data				Generated data tables are automatically saved to export the Excel
Barcode management				Support for barcode startup and binding of test data
defects liability period				one year
Software - free upgrade service				Lifetime free upgrade until the hardware is incompatible
Heat dissipation				Relying on the ventilation system to force air cooling

Professional Services

1) pre - zale service

① Professional advice

We promise to answer any professional and technical questions you ask.

② Provide Details.

We guarantee to provide all the technical information you need.

③ Provide reasonable quotations.

We guarantee to provide reasonable quotations for the products you consult with.

2) after - sale service

① Establish customer files , And will provide the relevant technical training and technical information as required by the customer

② Free repair for 1 year , Products have quality problems with 1 year free warranty.

The contract agreed according to the contract agreed , and long - time spare parts , software free upgrade.
