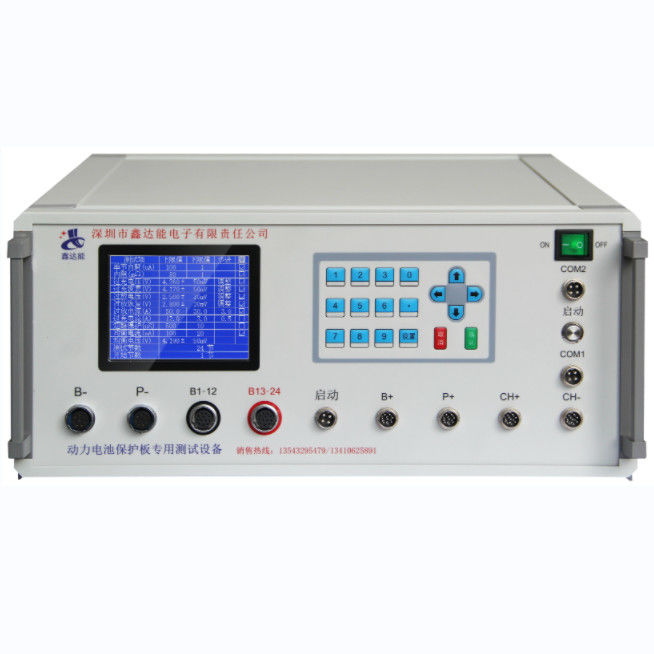

Lithium Ion Battery Testing Equipment Multipurpose Antiwear battery managment tester

name

Lithium Ion Battery Testing Equipment Multipurpose Antiwear battery managment tester

Brand Name:	XINDANENG
Model Number:	PBTS24-120
MOQ:	1
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Protective Plate Tester

Model Number:

PBTS 24-120

Over - Discharge Current:

120A

Over Charging Flow:

40A

Cabinet Size:

67*72*42（W*D*H ）

Power Supply:

AC/DC

Large Current Module:

Current Accuracy Of 0.1A

Safety Protection:

Yes

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

Stable Lithium Ion Battery Testing Equipment

,

Multipurpose Lithium Ion Battery Testing Equipment

,

Antiwear Battery Safety Testing Equipment

Product Description

Lithium Ion Battery Testing Equipment Multipurpose Antiwear battery managment tester

1. Scope Of Application

The BMS tester is applied to 1-24 strings of lithium battery protection plate safety test , test whether the function index within the range of reasonable parameters , to provide a set of testing standards , is conducive to improve production efficiency , convenient quality control , compatible with market common protection plate type , positive port ( port ) , negative port ( port ) , positive charge negative release , etc

2. Facility Environment

No strong vibration environment , no corrosive gas and flammable and explosive gas existence

3. Equipment Description

3.1 Test parameters

Project Type	Test Specification	Resolution Ratio
Test The Number Of Strings	1-24 Strings
Reference Voltage	0.5-5V	±1mV
Overcharge To Protect Voltage	0.5-5V	±1mV
Overcharge Protection Is Lifted	0.5-5V	±1mV
Overdischarge Protection Voltage	0.5-5V	±1mV
Overrelease Protection Is Lifted	0.5-5V	±1mV
Overdischarge Current Protection Value	1-150A	±0.1A
Overcharge Flow Protection Value	1-40A	±0.1A
Overflow Protection Delay	0-10S	±1ms
Overcharge / Overcharge Protection Delay	0-20S	±1ms
Balanced Turn On Voltage	0.5-5V	±5mV
Balanced Turn On Current	0-200mA	±1mA
Single Section Self - Consumption	0-500uA	±1uA
Internal Circuit Resistance Test	0-200mΩ	±1mΩ
Short - Circuit Protection ( More Than 6 Strings )	0-9999uS	±1uS

3.2 Test items

Name	PBTS24-120
Number of test strings	1-24
Basic functions	1. Internal resistance test 2. Individual Overcharge and over discharge voltage 3. Individual Overcharge and Discharge Recovery Voltage 4.Overcharge/discharge protection delay 5.Charge/discharge protection current 6. Charge/discharge over current delay 7.Single secondary overcharge and over discharge delay
Special test items	1. Single section self-consumption test(Refers to the true and accurate power consumption per section) 2.Equalizing current and equalizing voltage(It can accurately grasp the balance current and the balance open voltage 3. Test Order Support Adjustment
Test program startup	Support barcode scanning self-start/manual start
Test Data	Data sheets can be generated and saved for easy product traceability
Application	Measurement of lithium battery protection plate of ternary material, lithium iron phosphate, lithium cobalt, lithium manganese and so on.
protective function	Hardware boards and most software boards (special software boards BMS need to communicate)
Module	1.High current module: current level is 120A, current accuracy ±0.1A 2. Voltage module: programmable output 0.5-5V, accuracy ±5mV 3.Short-circuit module: super capacitor instantly provides 400A short-circuit current, test out the short-circuit delay time

4. FAQ

1) How To Install And Operate The Machine By Yourself ?

When you get the machine , just power it on and the machine will work . Because this machine is installed with English software . You just learn how to use the software , and the complete English user manual will be available to you along with the machine.

2) How many days does it take to purchase the equipment for delivery?

We will arrange the delivery items as soon as you pay for the equipment, predict 10-15work days send to.
