16 String Antiwear Lithium Battery Discharge Tester For Protective Plate

Name: 16 String Antiwear Lithium Battery Discharge Tester For Protective Plate
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: PBTS16-120
Availability: InStock

Brand Name:	XINDANENG
Model Number:	PBTS16-120
MOQ:	1
Price:	Negotiable
Delivery Time:	10 work day
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Power Tool Protection Plate Tester

Emphasize:

Energy Storage Series

Weight:

15KG

Case Size:

430*420*190mm

Fittings Of A Machine:

Online Data Line

Test Specification:

1-16 Strings

Packaging Details:

The wooden case

Supply Ability:

360 Set / Month

Highlight:

16 String Lithium Battery Discharge Tester

Antiwear Lithium Battery Discharge Tester

Multiscene Protective Plate Tester

Product Description

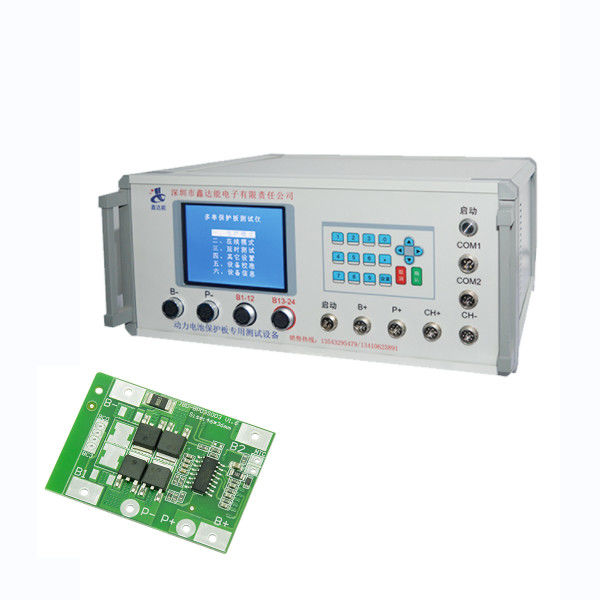

16 String Power Tool Protection Plate Tester Energy Storage Series

1. Equipment Introduction

The PBTS series multi - function protection panel tester is mainly used to test whether the functional indicators of the power battery protection panel are within the parameter range

2. Test Function

√ Overcharge to protect voltage

√ Overcharge recovery voltage

√ Overdischarge protection voltage

√ Overdischarge recovery voltage

√ Overdischarge current protection

√ Short warranty performance test

3. Equipment Parameter Description

Project Type	Test Specification	Resolution Ratio
Test The Number Of Strings	1-16 Strings
Reference Voltage	0.5-5V	±1mV
Overcharge To Protect Voltage	0.5-5V	±1mV
Overcharge Protection Is Lifted	0.5-5V	±1mV
Overdischarge Protection Voltage	0.5-5V	±1mV
Overrelease Protection Is Lifted	0.5-5V	±1mV
Overdischarge Current Protection Value	1-120A	±0.1A
Overcharge Flow Protection Value	1-40A	±0.1A
Overflow Protection Delay	0-10S	±1ms
Overcharge / Overcharge Protection Delay	0-20S	±1ms
Balanced Turn On Voltage	0.5-5V	±5mV
Balanced Turn On Current	0-200mA	±1mA
Single Section Self - Consumption	0-500uA	±1uA
Internal Circuit Resistance Test	0-200mΩ	±1mΩ
Short - Circuit Protection ( More Than 6 Strings )	0-9999uS	±1uS
Online Settings	String Communication	RS232 serial port

Test Type

Hardware solution protection board and most of the software board ( Special software board requires communication )

4. FAQ

1) How to order ?

Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request

We need to know the following information for your order before sending your PI

2) How many days will it take to deliver the equipment ?

We will arrange the delivery items as soon as you pay for the equipment , predict 10-15work day send to .
