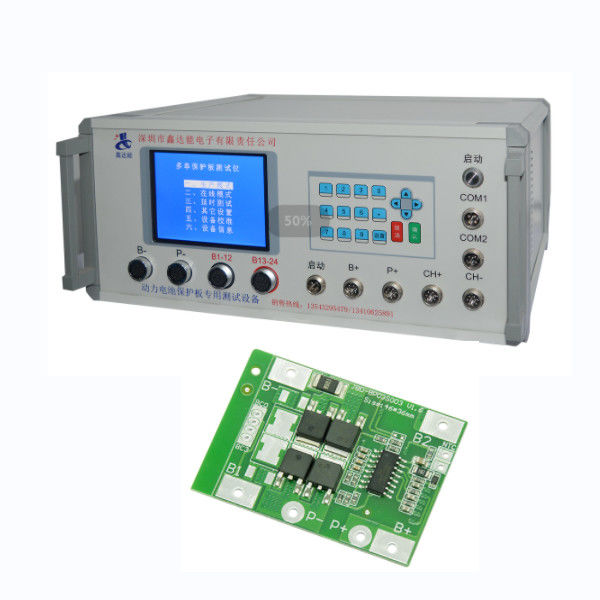

1-10 Series Scooter Lithium Battery Tester Multipurpose Stable

Brand Name: XINDANENG
Model Number: PBTS10-120
MOQ: 1
Price: Negotiable
Delivery Time: 10 work day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Twist Car Series Bare Board Testing Machine
Stress:
Scooter Twist Car Series
Product Model:
Protective Plate Tester PBTS 10-120
Use:
10 Test The Battery Protection Panels For Series And Below
Current Level:
120A
Voltage Module:
Output 0.5-5V
Packaging Details:
The wooden case
Supply Ability:
160 Set / Month
Highlight:

Scooter Lithium Battery Tester

,

Multipurpose Lithium Battery Tester

,

Stable Bare Board Testing Machine

Product Description

1-10 Series Scooter Twist Car Series Bare Board Testing Machine



1. Scope Of Application

Applied in the safety test of 1 - 10 string lithium battery protection plate , testing whether the functional indicators of the protection board are within the range of reasonable parameters, providing the staff with a set of testing standards, which is conducive to improving production efficiency , convenient quality control , compatible with the common protection board types on the market



2. Test Function

√ Overcharge to protect voltage

√ Charging current protection

√ Balanced turn on voltage

√ Balanced real - time current

√ Total self - consumption current of the protection plate



3. Equipment Environmental Requirements

1) Power supply AC voltage 220V ± 10% , frequency: 50Hz ± 10%

2) No strong vibration environment , no corrosive gas and flammable and explosive gas existence .



4. Equipment Parameter Description

Project Type Test Specification Resolution Ratio
Test The Number Of Strings 1-10 Strings
Reference Voltage 0.5-5V ±1mV
Overcharge To Protect Voltage 0.5-5V ±1mV
Overcharge Protection Is Lifted 0.5-5V ±1mV
Overdischarge Protection Voltage 0.5-5V ±1mV
Overrelease Protection Is Lifted 0.5-5V ±1mV
Overdischarge Current Protection Value 1-120A ±0.1A
Overcharge Flow Protection Value 1-40A ±0.1A
Overflow Protection Delay 0-10S ±1ms
Overcharge / Overcharge Protection Delay 0-20S ±1ms
Balanced Turn On Voltage 0.5-5V ±5mV
