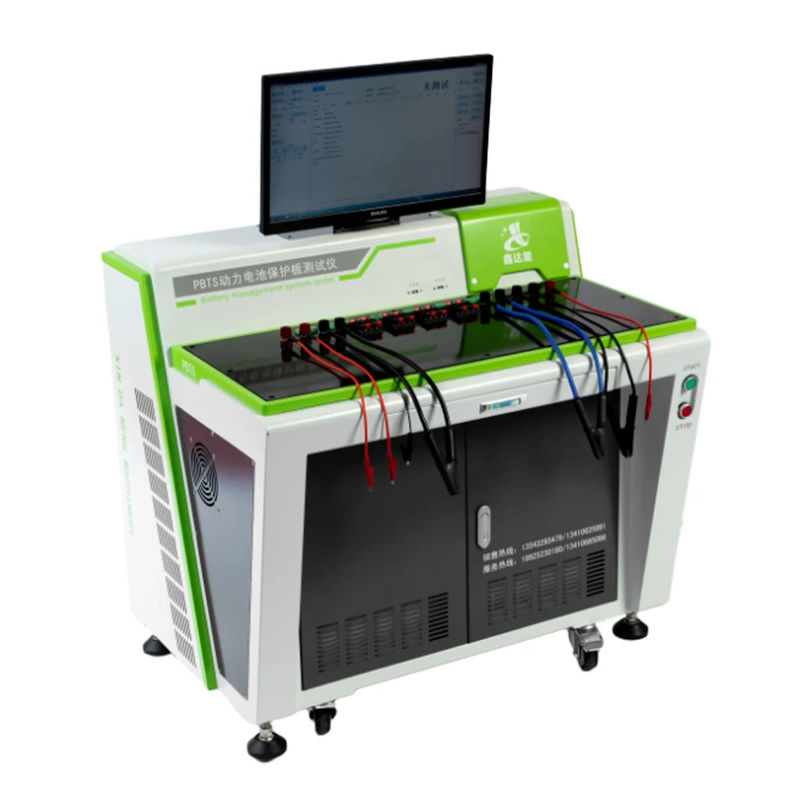

Revolutionize Your Testing Process with BMS Tester for Multi-String Protection Boards

Name: Revolutionize Your Testing Process with BMS Tester for Multi-String Protection Boards
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: PBTS32-150 ( Cabinet Type )
Availability: InStock

Brand Name:	XINDANENG
Model Number:	PBTS32-150 ( Cabinet Type )
MOQ:	1
Price:	Negotiable
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

32 Series Protection Board Tester

Emphasize:

The Cabinet Type

Model Number:

PBTS32-150 ( Cabinet Type )

Test The Number Of Strings:

1-32 Strings

Reference Voltage:

0.5-5V

Current Protection Value:

1-40A

Warranty:

1 Year

Packaging Details:

The wooden case

Highlight:

Practical Battery Testing Kit

Cabinet Type Battery Testing Kit

32 Strings Power Board Tester

Product Description

Revolutionize Your Testing Process with BMS Tester for Multi-String Protection Boards

1. Test Function

Overcharge protection voltage, overcharge recovery voltage , overcharge protection voltage , overput recovery voltage , overdischarge current protection , short protection performance test , charging current protection , balanced open voltage , balanced real - time current , protection plate total since consumption current , single section self consumption current , overcharge protection delay , overprotection delay , overcurrent protection delay , internal resistance .

2. Technical Parameters

Power supply AC voltage 220V ± 10% , frequency 50Hz ± 10%

3. Function Introduction

Product Model	Protective Plate Tester PBTS32-150 ( Cabinet Type )
Use	For 24 strings and below
Basic Function	Overcharge and overdischarge voltage test
	Overcharge recovery and overplay recovery test
	Internal resistance test
	Overflow protection test
Special Test Items	Short - circuit protection test ( subtle level )
	Single section self - consumption test ( means true and accurate self - consumption for each section )
	Equilibrium current and equilibrium open voltage test
	Infrared scan ( barcode scan ) The ID of each protective plate and store records
Protection Plate Type	Lithium iron phosphate , ternary lithium cobalt oxide , lithium manganese oxide , etc
Module	High current module the current level is 150A , and the current accuracy is 0.1A
	Voltage module programmable output 0.5-5V , accuracy ± 1mV
	Short - circuit module an ultracapacitor , which fully mimics the PACK battery voltage

4. FAQ

1) How To Install And Operate The Machine By Yourself ?

When you get the machine , just power it on and the machine will work . Because this machine is installed with English software .

You just learn how to use the software , and the complete English user manual will be available to you along with the machine.

2) How long is the warranty ?

We are very confident in our products and we package them very well so usually you receive intact equipment.

Any quality issues , which we will deal with immediately .

If the equipment parts are damaged , the equipment warranty period is 1 year (12 months ) for 1 year due to non - human factors , and we will provide the replacement parts at cost.
