BMS Tester
Created with Pixso. Professional BMS Tester for Power Battery Protection Plate Testing 16 Strings 120A Excessive Flow
name
  • name
  • name

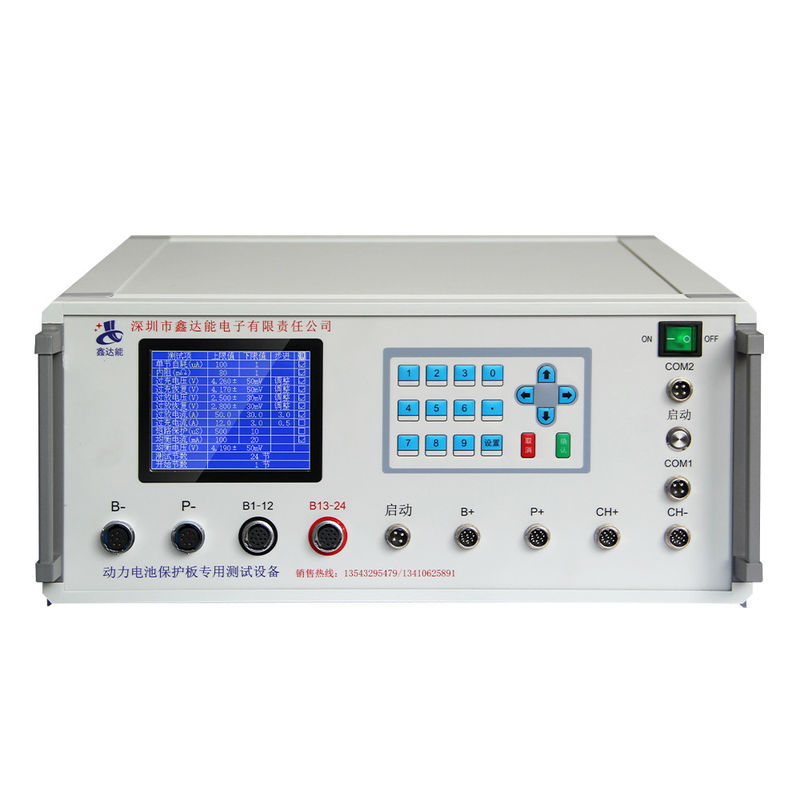

Professional BMS Tester for Power Battery Protection Plate Testing 16 Strings 120A Excessive Flow

Brand Name: XINDANENG
Model Number: PBTS16-120
MOQ: 1
Price: Negotiable
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model Number:
PBTS16-120
Size:
430*420*190mm（W*D*H ）
Pigment:
Silver Gray
Resolution Ratio:
RS232 Serial Port
String Number:
1-16 Strings
Frequency:
50Hz±10%
Color:
White
Packaging Details:
The wooden case
Supply Ability:
500 Set / Month
Highlight:

Multipurpose BMS Testing Machine

,

16 Strings BMS Testing Machine

,

120A BMS Testing Machine

Product Description

Professional BMS Tester for Power Battery Protection Plate Testing 16 Strings 120A Excessive Flow



1. Brief Introduction



  It is mainly used to detect whether the functional indicators of the power battery protection plate are within the parameter range , so as to provide a set of testing standards for the staff . Suitable for protection plate manufacturers and power battery manufacturers of power battery protection plate testing



2. Equipment Parameter Description



Project Type Test Specification Resolution Ratio
Test The Number Of Strings 1-24 Strings
Reference Voltage 0.5-5V ±1mV
Overcharge To Protect Voltage 0.5-5V ±1mV
Overcharge Protection Is Lifted 0.5-5V ±1mV
Overdischarge Protection Voltage 0.5-5V ±1mV
Overrelease Protection Is Lifted 0.5-5V ±1mV
Overdischarge Current Protection Value 1-150A ±0.1A
Overcharge Flow Protection Value 1-40A ±0.1A
Overflow Protection Delay 0-10S ±1ms
Overcharge / Overcharge Protection Delay 0-20S ±1ms
Balanced Turn On Voltage 0.5-5V ±5mV



3. Product Mix



Case Size 510*500*220mm(W*D*H )
weight 23KG
Number Of Channels 1
Equipment Accessories Test table pen line , online data line , user manual, upper computer software.



4. FAQ



 How To Order ?



 Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request.



 Are you a trading company or factory?



 We are a factory more than 10 years.



Tags:

Anticorrosive Bms Tester Machine

Multifunctional Bms Testing Equipment

Multipurpose Bms Test System
