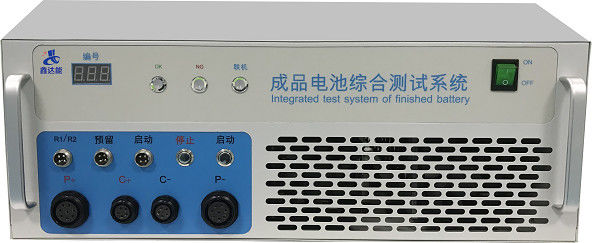

Comprehensive 60A Battery Tester , Multipurpose Battery Testing Device

Name: Comprehensive 60A Battery Tester , Multipurpose Battery Testing Device
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS50-05-60
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS50-05-60
MOQ:	1
Price:	Can discuss
Delivery Time:	10 work day
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Battery Comprehensive Testing

Size:

580*500*220mm（W*D*H ）

Model Number:

BTS50-05-60

Color:

Silvery Grey

Testing Time:

30-60s

Charging Range:

14.0.1 - 5A

Discharge Current:

60A

Max Voltage:

50V

Packaging Details:

The wooden case

Supply Ability:

500 set month

Highlight:

Comprehensive Battery Discharge Tester

60A Battery Discharge Tester

Multipurpose Battery Testing Device

Product Description

Comprehensive 60A Battery Tester , Multipurpose Battery Testing Device

1. Product characteristics

√ Equipment debugging is simple, easy to learn and easy to understand

√ The system uses 32 bit ARM processor , voltage and current use 16 - bit AD converter

√ It is tested faster and has higher test accuracy than similar equipment.

√ Support the simultaneous operation of multiple devices.

√ Test items Programmable control.

2. Device Parameter Description

Test class	test item	measuring range	resolution ratio
open circuit voltage	open circuit voltage 1	0-50V	±2mV
	open circuit voltage 2	0-50V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	discharge current	0.1-60A	±1mA
	discharge time	0-60S	±1mS
Discharge perflow test	Over-discharge current	4-60A	±1mA
	Overflow delay	0-20S	±1mS
Charging test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	charging current	0.1-5A	±1mA
	charging interval	0-60S	±1mS
Charging protection test	Charging over the flow	2-5A	±1mA
	Charging delay	0-20S	±0.1mS
ResistanceR1/R2	NTC,ID	0-1000KΩ	±0.1KΩ
Sustainable output power		0.25KW
Sustainable load power		3KW
on-line mode		Serial communication ( multiple online use )
test data		Generated data tables are automatically saved to export the Excel
Barcode management		Support for barcode startup and binding of test data
defects liability period		one year
free upgrade service		Lifetime free upgrade until the hardware is incompatible
Heat dissipation		Relying on the ventilation system to force air cooling

3. Scope of application

It is used in the functional verification and test and quality control of semi - finished products and finished products in the production process of electric tools , solar energy storage , electric balance vehicle , scooter and other battery packs .

4. Equipment environment requirements and technical parameters

1) Power supply AC voltage 220V ± 10% , frequency 50Hz ± 10%

2) Ambient temperature-10~45℃

3) No strong vibration environment , no corrosive gas and flammable and explosive gas existence

5. FAQ

1.Are you a manufacturer or a trading company?

We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

2.What can you buy from us?

PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series discharge instrument.

3.How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

4.How long is your delivery time?

1). If the goods are in stock, it is 5-10 days.

2). If customized services, It usually takes 30-60 days depending on the specifications of the custom instrument.

5.How to pay?

T T, L C, etc., it is recommended to use Alibaba Trade Guarantee.

6.How is the package of goods Delivery methods ?

1). Standard export wooden box packaging

2). Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
