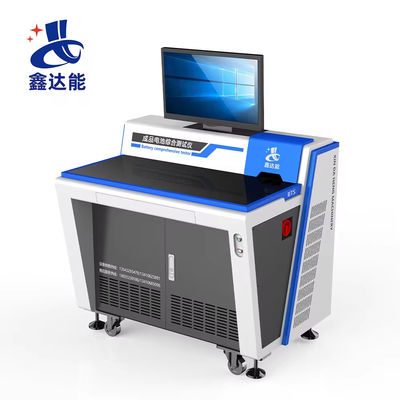

Simple and Easy to 100V 120A Battery Performance Tester for Battery Pack Testing

Name: Simple and Easy to 100V 120A Battery Performance Tester for Battery Pack Testing
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS100-20-120
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS100-20-120
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Characteristic:

With A Single String Of Voltage Internal Resistance Test

Starting Voltage:

0-100V

Overflow Delay:

0-20S

Short Circuit Protection Delay:

0-9999uS

Equipment Accessories:

Upcomputer Software

Number Of Channels:

1 ( Built - In Voltage Internal Resistance Tester )

Product Name:

Battery Analyzer

Color:

Blue

Usage:

Auto Testing Machine,Test Li-ion Battery

Function:

Battery Performance

Packaging Details:

The wooden case

Supply Ability:

60 Set / Month

Highlight:

100V Battery Pack Tester

120A Battery Pack Tester

Upper Computer Interface Test Battery Pack

Product Description

Simple and Easy to 100V 120A Battery Performance Tester for Battery Pack Testing

1. Equipment Characteristics

√ Equipment debugging is simple , easy to learn and easy to understand
√ Battery pack monomer consistency evaluation test
√ Battery pack whole rental internal resistance test
√ Equipment input voltage AC220V / 50Hz ( input line must be grounded )
√ Equipment input enclosure is well grounded
√ Can be equipped with a scanning gun to start , to facilitate data tracking

2. Test Item

1) Short circuit protection Test battery positive and minus battery cut protection time ( subtle level )
2) Charging test Test the battery continuous charging function, and test whether the battery charging performance is good
3) Charging over current test test the battery high current charging protection function , the battery high current charging triggers the battery protection plate charging current protection function

3. Device Parameter Description

Test Class	Test item	Measuring range	Resolution ratio
Open Circuit Voltage	Open circuit voltage 1	10-100V	±2mV
	Open circuit voltage 2	10-100V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-100V	±2mV
	End voltage	0-100V	±2mV
	discharge current	0.1-60A	±1mA
	discharge time	0-60S	±1mS
Discharge perflow test	Over-discharge current	4-120A	±1mA
	Overflow delay	0-20S	±1mS
Short - circuit protection	Short circuit protection delay	0-9999uS	±1uS

4. How long Is The Warranty ?

If the equipment parts are damaged , the equipment warranty period is 1 year (12 months ) for 1 year due to non - human factors , and we will provide the replacement parts at cost.
