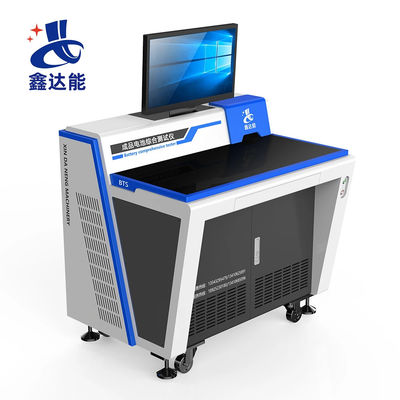

Versatile and User-Friendly Battery Performance Tester for Electric Motorcycles Backup Power Supplies and More 100V 200A

Name: Versatile and User-Friendly Battery Performance Tester for Electric Motorcycles Backup Power Supplies and More 100V 200A
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS100-20-200
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS100-20-200
MOQ:	1
Price:	Negotiable
Delivery Time:	10 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Battery Test Instruments

Model Number:

BTS100-20-200

Weight:

150KG

Case Size:

1100*700*1400mm（W*D*H ）

Bearing Power:

6KW

Quality Assurance:

1 Year

Usage:

Battery Over-all Functions Testing

Battery Type:

Ternary Or LFP

Packaging Details:

The wooden case

Supply Ability:

220 Set / Month

Highlight:

Shipbuilding Battery Testing Instruments

100V Battery Testing Instruments

200A Cell Resistance Tester

Product Description

100V 200A Battery Test Instruments With Ventilation And Cooling System

1. Scope Of Application

It is used in the production process of automotive electronics , aerospace , shipbuilding , solar energy storage , electric bicycle , electric motorcycle , backup power supply battery and communication power supply

2. Equipment Characteristics

√ Equipment debugging is simple , easy to learn and easy to understand

√ Friendly upper - computer human - computer interaction interface

√ Test records support saving to SQL or EXCEL

√ Support one upper - computer computer software to control multiple devices

√ Battery pack whole rental internal resistance test

3. Device Parameter Description

Test class	Test item	Measuring range	Resolution ratio
open circuit voltage	Open circuit voltage 1	10-100V	±2mV
	Open circuit voltage 2	10-100V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-100V	±2mV
	End voltage	0-100V	±2mV
	discharge current	0.1-100A	±1mA
	discharge time	0-60S	±1mS
Discharge perflow test	Over-discharge current	10-200A	±1mA
	Overflow delay	0-30S	±1mS
short - circuit protection	Short circuit protection delay	0-9999uS	±1uS
Charging test	starting voltage	10-100V	±2mV
	End voltage	10-100V	±2mV
	charging current	0.1A-20A	±1mA
	charging interval	0-60S	±1mS
Charging protection test	Charging over the flow	4-20A	±1mA
	Charging delay	0-20S	±0.1mS
Resistance R1 / R2	NTC,ID	0-1000KΩ	±0.1KΩ
Sustainable output power		2KW
Sustainable load power		10KW

On - line mode	Serial communication ( RS232 , multiple online )
Test Data	Generated data tables are automatically saved to export the Excel
Barcode Management	Support for barcode startup and binding of test data
Befects Liability Period	one year
Software - free upgrade service	Lifetime free upgrade until the hardware is incompatible
Heat Dissipation	Relying on the ventilation system to force air cooling

4. FAQ

1) How long Is The Warranty ?

We are very confident in our products and we package them very well so usually you receive intact equipment

Any quality issues , which we will deal with immediately . If the equipment parts are damaged , the equipment warranty period is 1 year (12 months ) for 1 year due to non - human factors , and we will provide the replacement parts free of charge

2) How to order ?

Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request

We need to know the following information for your order before sending your PI

3) How many days does it take to purchase the equipment for delivery?

We will arrange the delivery items as soon as you pay for the equipment , predict 10-15work day send to .
