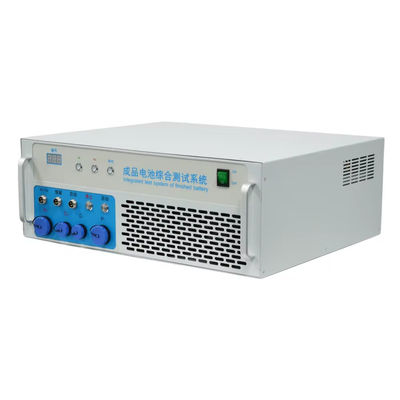

50V 60A Cylindrical Square Battery Comprehensive Resistance Discharge Tester Lithium Battery Tester For E Bike Battery

Name: 50V 60A Cylindrical Square Battery Comprehensive Resistance Discharge Tester Lithium Battery Tester For E Bike Battery
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS50-05-60
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS50-05-60
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 working days to ship
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Size:

49*57*21CM

Weight:

30KG

Open Circuit Voltage:

0-50V

AC Internal Resistance Test:

0-1000mΩ

Use:

Battery Pack Semi - Finished Products , Finished Product Test

Discharge Current:

0.1-60A

Charging End Voltage:

0-50V

Product Name:

Battery Analyzer,li-ion Battery Capacity/discharge Tester

Packaging Details:

The wooden case

Supply Ability:

50 Set / Month

Highlight:

Anticorrosive Battery Test Equipment

130KG Battery Test Equipment

60A Lithium Ion Battery Testing Machine

Product Description

50V 60A Cylindrical Square Battery Comprehensive Resistance Discharge Tester Lithium Battery Tester For E Bike Battery

1. Main Features:

a. BTS series comprehensive tester
A device for quickly and accurately to
test the performance of finished
batteries.

b.The main test items the system uses a 32-bit ARM
processor, and a 16-bit AD converter for voltage and current.
Open circuit voltage, AC internal resistance, discharge test, etc.

c. Compared to similar devices the system has faster testing
speed, higher testing accuracy, and supports simultaneous operation
of multiple devices.

d. Scope of Application Automotive electronics, aerospace,
shipbuilding, solar energy storage, electric bicycles, electric motorcycles,
backup power batteries,communication power supplies, etc.

2. Equipment Characteristics

√ Equipment debugging is simple, easy to learn and understand.

√ Maximum test voltage of 50V

√ Maximum charging current is 5A , and the discharge current is 60A

√ Support the test project export and import function.

√ Battery pack continuous charging test.

√ Equipment input voltage AC220V / 50Hz ( input line must be grounded ).

3. Device Parameters Description

Test class	Test item	Measuring range	Resolution ratio
open circuit voltage	Open circuit voltage 1	0-50V	±2mV
	Open circuit voltage 2	0-50V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	discharge current	0.1-60A	±1mA
	discharge time	0-60S	±1mS
Discharge perflow test	Over-discharge current	4-60A	±1mA
	Overflow delay	0-20S	±1mS
short - circuit protection	Short circuit protection delay	0-9999uS	±1uS
Charging test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	charging current	0.1A-5A	±1mA
	charging interval	0-60S	±1mS
Charging protection test	Charging over the flow	2-5A	±1mA
	Charging delay	0-20S	±0.1mS
Resistance R1 / R2	NTC,ID	0-1000KΩ	±0.1KΩ
Sustainable output power		0.25KW
Sustainable load power		3KW

On - Line Mode	Serial communication ( multiple online )
Test Data	Generated data tables are automatically saved to export the Excel
Barcode Management	Support for barcode startup and binding of test data
Defects Liability Period	one year
Software - Free Upgrade Service	Lifetime free upgrade until the hardware is incompatible
Heat Dissipation	Relying on the ventilation system to force air cooling

4. FAQ

1.Are you a manufacturer or a trading company?

We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

2.What can you buy from us?

PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series discharge instrument

3.How can we guarantee quality?

Always a pre-production sample before mass production

Always final Inspection before shipment;

4.How long is your delivery time?

1). If the goods are in stock, it is 5-10 days.

2). We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

5.How to pay?

T T, L C, etc., it is recommended to use Alibaba Trade Guarantee.

6.How is the package of goods Delivery methods?

1). Standard export wooden box packaging

2). Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
