Brand Name: | XINDANENG |
Model Number: | BTS100-20-120 |
MOQ: | 1 |
Price: | Can discuss |
Delivery Time: | In stock 7-10 days to ship |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |

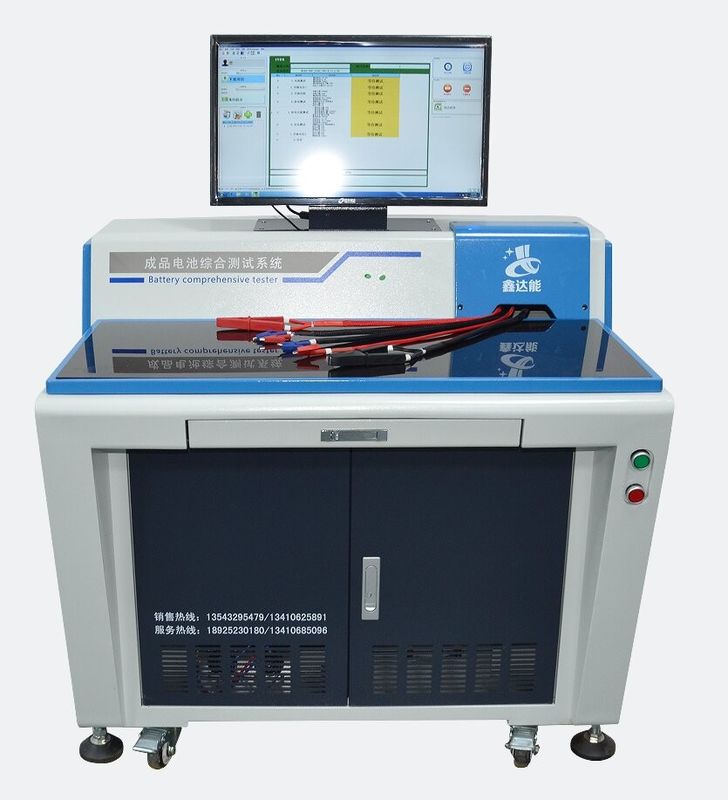

Electric Vehicle Battery Comprehensive Testing and Control High Accuracy Battery Performance Tester
It is used in the functional verification and test and quality control of semi-finished products and finished products in the production process of electric tools, solar energy storage, electric balance vehicle, scooter and other battery packs.
Basic Function | Open circuit voltage test |
Communication internal resistance test | |
ID resistance test | |
NTC resistance test | |
Charging Performance Test | Battery PACK continuous charging function , to verify that the charging is normal |
Battery PACK charge over - current protection function test | |
Discharge Performance Test | Battery PACK continuous load capacity , continuous discharge check voltage drop |
Battery PACK discharge overcurrent protection function test | |
Short Circuit Protection Test | Test battery positive and negative short - connected battery cut - off protection time ( subtle level ) |
Equipment Protection Function | Software protection function power data protection |
Test Class | Test item | Measuring range | Resolution ratio | |||||
Open Circuit Voltage | Open circuit voltage 1 | 10-100V | ±2mV | |||||
Open circuit voltage 2 | 10-100V | ±2mV | ||||||
Communication internal resistance | Communication internal resistance test | 0-1000mΩ | ±1mΩ | |||||
Discharge test | starting voltage | 0-100V | ±2mV | |||||
End voltage | 0-100V | ±2mV | ||||||
discharge current | 0.1-60A | ±1mA | ||||||
discharge time | 0-60S | ±1mS | ||||||
Discharge perflow test | Over-discharge current | 10-120A | ±1mA | |||||
Overflow delay | 0-30S | ±1mS | ||||||
Short - circuit protection | Short circuit protection delay | 0-9999uS | ±1uS | |||||
Charging Test | starting voltage | 10-100V | ±2mV | |||||
End voltage | 10-100V | ±2mV | ||||||
charging current | 0.1A-20A | ±1mA | ||||||
charging interval | 0-60S | ±1mS | ||||||
Charging Protection Test | Charging over the flow | 4-20A | ±1mA | |||||
Charging delay | 0-20S | ±0.1mS | ||||||
Resistance R1 / R2 | NTC,ID | 0-1000KΩ | ±0.1KΩ | |||||
Sustainable output power | 2KW | |||||||
Sustainable load power | 6KW | |||||||
on - line mode | Serial communication ( RS232 , multiple online ) | |||||||
test data | Generated data tables are automatically saved to export the Excel | |||||||
Barcode management | Support for barcode startup and binding of test data | |||||||
defects liability period | one year | |||||||
Software - free upgrade service | Lifetime free upgrade until the hardware is incompatible | |||||||
Heat dissipation | Relying on the ventilation system to force air cooling |
Professional Services
1) pre - sale service
① Professional advice
We promise to answer any professional and technical questions you ask
② Provide Details
We guarantee to provide all the technical information you need
③ Provide reasonable quotations
We guarantee to provide reasonable quotations for the products you consult with
2) after - sale service
① Establish customer files , And will provide the relevant technical training and technical information as required by the customer
② Free repair for 1 year , Products have quality problems , 1 year free warranty , the contract agreed according to the contract agreed , and long - time spare parts , software free upgrade .
FAQ
1.Are you a manufacturer or a trading company
We are professional laboratory instrument manufacturers, have their own design team and factory, have
mature technical experience, and can guarantee the quality of products and the optimal price.
2.What can you buy from us
PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging
aging cabinet,BDS series discharge instrument
3.How can we guarantee quality
Always a pre-production sample before mass production; Always final Inspection before shipment;
4.How long is your delivery time lf I want to customize the instrument, how long does it take
1).lf the goods are in stock, it is 5-10 days.
2).We can provide customized services for our customers. It usually takes 30-60 days depending on the
specifications of the custom instrument.
5.How to pay
T T.L C.etc.. it is recommended to use Alibaba Trade Guarantee.
6.How is the package of goods Delivery methods
1).Standard export wooden box packaging
2). Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at
sight.
