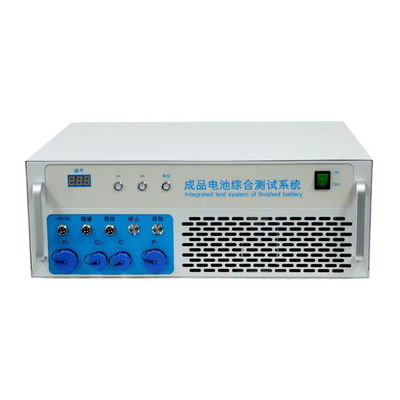

Fast and Accurate Testing for 18650 Capacity Tester Analyzer 50V 60A Multi Function

Name: Fast and Accurate Testing for 18650 Capacity Tester Analyzer 50V 60A Multi Function
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS50-05-60
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS50-05-60
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Battery Pack Tester

Case Size:

580*500*220mm（W*D*H ）

Model Number:

BTS50-05-60

Weight:

24KG

Type:

Battery Tester

Heat Dissipation:

Relying On The Ventilation System

Packaging Details:

The wooden case

Supply Ability:

500 Set / Month

Highlight:

Practical 18650 Capacity Tester

Stable 18650 Capacity Tester

Multi Function 18650 Battery Analyzer

Product Description

Fast and Accurate Testing for 18650 Capacity Tester Analyzer 50V 60A Multi Function

1. Equipment Characteristics

√ Equipment debugging is simple, easy to learn and easy to understand

√ The system uses 32 bit ARM processor, voltage and current use 16 - bit AD converter

√ It is tested faster and has higher test accuracy than similar equipment

√ The device supports charge and discharge port and tap batteries

√ Support one upper - computer computer software to control multiple devices

2. Equipment Introduction

Comprehensive test equipment is a fast and accurate test of the performance of the finished battery equipment , the main test items are open circuit voltage , AC internal resistance , discharge test , discharge overcurrent test , short circuit protection test , charging test , charging overcurrent protection test , resistance test

3. Device Parameter Description

Test class	Test item	Measuring range	Resolution ratio
open circuit voltage	Open circuit voltage 1	0-50V	±2mV
	Open circuit voltage 2	0-50V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	discharge current	0.1-60A	±1mA
	discharge time	0-60S	±1mS
Discharge perflow test	Over-discharge current	4-60A	±1mA
	Overflow delay	0-20S	±1mS
short - circuit protection	Short circuit protection delay	0-9999uS	±1uS
Charging test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	charging current	0.1A-5A	±1mA
	charging interval	0-60S	±1mS
Charging protection test	Charging over the flow	2-5A	±1mA
	Charging delay	0-20S	±0.1mS
Resistance R1 / R2	NTC,ID	0-1000KΩ	±0.1KΩ
Sustainable output power		0.25KW
Sustainable load power		3KW

4. FAQ

1) How to order ?

Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request

We need to know the following information for your order before sending your PI

2) How many days does it take to purchase the equipment for delivery?

We will arrange the delivery items as soon as you pay for the equipment , predict 10-15work day send to .
