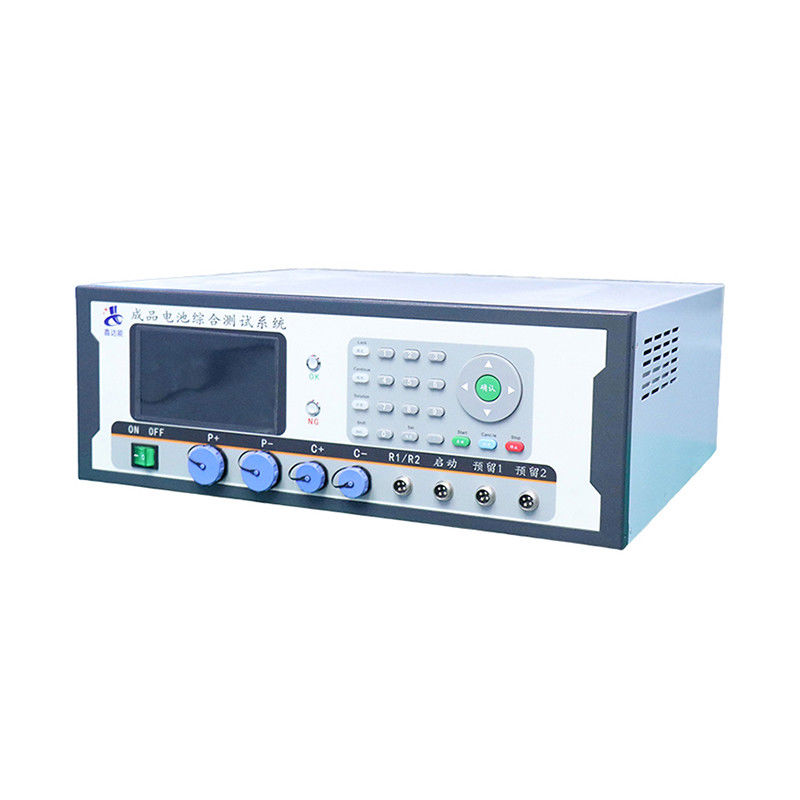

60V 50A Battery Pack Testing Machine for Finished Lithium Battery with screen

Name: 60V 50A Battery Pack Testing Machine for Finished Lithium Battery with screen
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS50-05-60
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS50-05-60
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Battery Test System

Color:

Silvery Grey

Weight:

130KG

Heat Dissipation:

Air Blast Cooling

Purpose:

For Battery Packs Below 100V

Material:

Metal Case

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

100V Battery Test System

20A Battery Test System

Binary Channels Industrial Battery Testing Equipment

Product Description

50V 5A Charging Battery Test System Battery Pack Tester 60A Binary Channels

1. Equipment Introduction

Comprehensive test equipment is a fast and accurate test of the performance of the finished battery equipment , the system uses 32 - bit ARM processor , voltage and current use 16 - bit AD converter , compared with similar equipment , fast test speed , high test accuracy , and support multiple devices to operate at the same time

2. Equipment Characteristics

√ Equipment debugging is simple , easy to learn and easy to understand

√ Lifetime free upgrade until the hardware is incompatible

√ The continuous output power of the equipment is 0.25KW

√ The continuous load power is 3KW

√ Support the test project export and import function

3. Device Parameter Description

Test class	Test item	Measuring range	Resolution ratio
open circuit voltage	Open circuit voltage 1	0-50V	±2mV
	Open circuit voltage 2	0-50V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	discharge current	0.1-60A	±1mA
	discharge time	0-60S	±1mS
Discharge perflow test	Over-discharge current	4-60A	±1mA
	Overflow delay	0-20S	±1mS
short - circuit protection	Short circuit protection delay	0-9999uS	±1uS
Charging test	starting voltage	0-50V	±2mV
	End voltage	0-50V	±2mV
	charging current	0.1A-5A	±1mA
	charging interval	0-60S	±1mS
Charging protection test	Charging over the flow	2-5A	±1mA
	Charging delay	0-20S	±0.1mS
Resistance R1 / R2	NTC,ID	0-1000KΩ	±0.1KΩ

4. Product Details

Case size	contact with us
Weight	About 30 KG
Number of channels	1
Equipment accessories	Test table pen line , user manual , upper computer software
