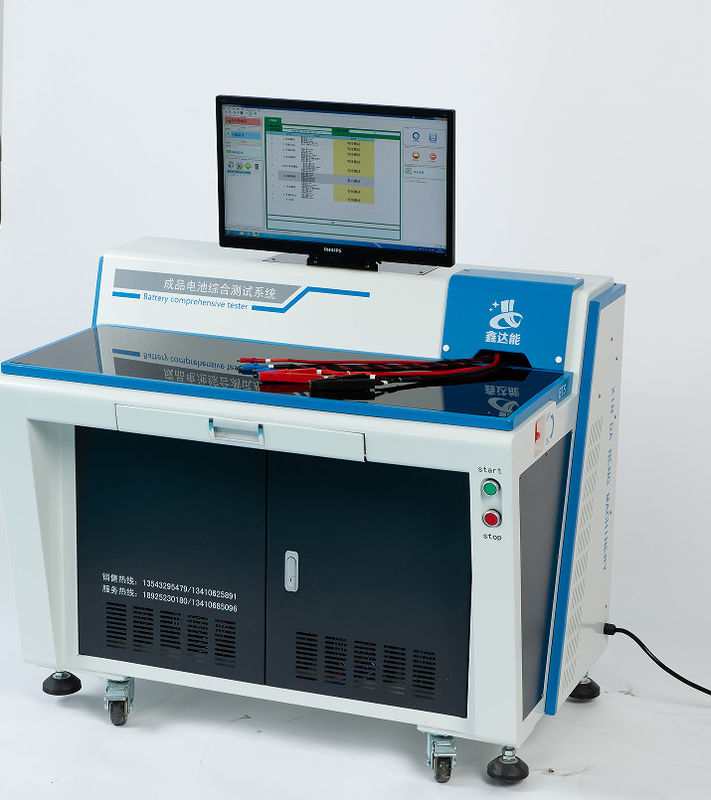

Practical Automotive Battery Pack Tester Analyzer 100V 20A Stable

Name: Practical Automotive Battery Pack Tester Analyzer 100V 20A Stable
Brand: Shenzhen Xindaneng Electronics Co., Ltd.
SKU: BTS100-20-200
Availability: InStock

Brand Name:	XINDANENG
Model Number:	BTS100-20-200
MOQ:	1
Price:	Negotiable
Delivery Time:	In stock 7-10 days to ship
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

The Product Name:

Automotive Battery Testing Aquipment

Color:

Silvery Grey , Black

Material:

Metal Box Case

Working Temperature:

-10~45℃

Barcode Management:

Supports Barcode Startup

Number Of Channels:

1 Channel

Packaging Details:

The wooden case

Supply Ability:

300 Set / Month

Highlight:

Practical Battery Pack Tester

20A Battery Pack Tester

100V Automotive Battery Analyzer

Product Description

100V 20A Charge Battery Pack Tester Automotive Battery Tester Analyzer

1. Equipment introduction

Comprehensive test equipment is a device that quickly and accurately tests the performance of finished batteries , Compared with similar equipment , fast test speed , high test accuracy , support multiple devices at the same time

2. Function Introduction

Product Model	Battery integrated tester BTS100-20-200
Use	For semi - finished products and finished product testing of battery pack below 100V
Basic Function	Open circuit voltage test
	Communication internal resistance test
	ID resistance test
	NTC resistance test
Charging Performance Test	Battery PACK continuous charging function , to verify that the charging is normal
	Battery PACK charge over - current protection function test
Discharge Performance Test	Battery PACK continuous load capacity , continuous discharge check voltage drop
	Battery PACK discharge overcurrent protection function test
Short Circuit Protection Test	Test battery positive and negative short - connected battery cut - off protection time ( subtle level )
Equipment Protection Function	Software protection function power data protection
	Hardware protection. Power loss protection , short circuit protection , battery connection , wrong protection

3. Environmental Requirements

No strong vibration environment , no corrosive gas and flammable and explosive gas existence

4. Device Parameter Description

Test Class	Test item	Measuring range	Resolution ratio
Open Circuit Voltage	Open circuit voltage 1	10-100V	±2mV
	Open circuit voltage 2	10-100V	±2mV
Communication internal resistance	Communication internal resistance test	0-1000mΩ	±1mΩ
Discharge test	starting voltage	0-100V	±2mV
	End voltage	0-100V	±2mV
	discharge current	0.1-100A	±1mA
	discharge time	0-60S	±1mS
Discharge perflow test	Over-discharge current	10-200A	±1mA
	Overflow delay	0-30S	±1mS
Short - circuit protection	Short circuit protection delay	0-9999uS	±1uS
Charging Test	starting voltage	10-100V	±2mV
	End voltage	10-100V	±2mV
	charging current	0.1A-20A	±1mA
	charging interval	0-60S	±1mS
Charging Protection Test	Charging over the flow	4-20A	±1mA
	Charging delay	0-20S	±0.1mS
